771-9995/005-203

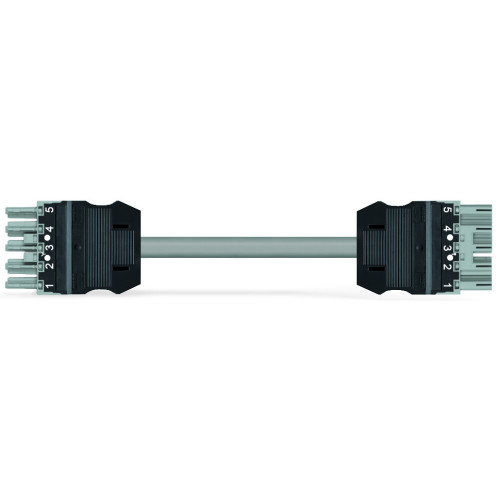

pre-assembled interconnecting cable, Eca, Socket/plug, gray

Manufacturer's No: 771-9995/005-203     Manufacturer: WAGO
pre-assembled interconnecting cable, Eca, Socket/plug, gray

Availability On Request

POA
  • Pre-assembled interconnecting cable
  • Eca rated
  • 5-pole socket/plug
  • Cable type: (H)05VV-F
  • Conductor size: 5x1.0 mm²
  • Cable length: 2 meters
  • Individual conductor size: 1.00 mm²
  • Color: Gray


Product

Manufacturer Material ID -
771-9995/005-203
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Strip length -
- Millimetre
Dismantle length -
- Millimetre
Nominal cross section conductor -
1 Square millimetre
Colour housing -
Black
Locking mechanism -
Separate
Colour outer sheath -
Grey
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Conductor end treatment -
Ultrasonic compressed wire ends
Cable diameter -
7.8 Millimetre
Cable permanent temperature-resistant to -
70 Degrees celsius
Cable type -
H05VV-F
Colour coding/contact insert -
Grey
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.310794 Kilowatthour
Housing colour -
Black
Housing material -
Polyamide (PA)
Insulating piece permanent temperature-resistant -
105 Degrees celsius
Max. operation temperature at conductor -
85 Degrees celsius
Mechanical coding -
Nominal cross sectional area of conductor -
1 Square millimetre
Number of poles -
5
Pole codification -
1, 2, 3, 4, 5
Pollution degree -
3
Rated current -
10 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath colour -
Grey
Surface finish contacts -
Tinned
Total length -
2000 Millimetre
Type of finished cable -
Connecting cable
Type of locking -
Separate
Type side 1 -
Bus
Type side 2 -
Plug
