772-269

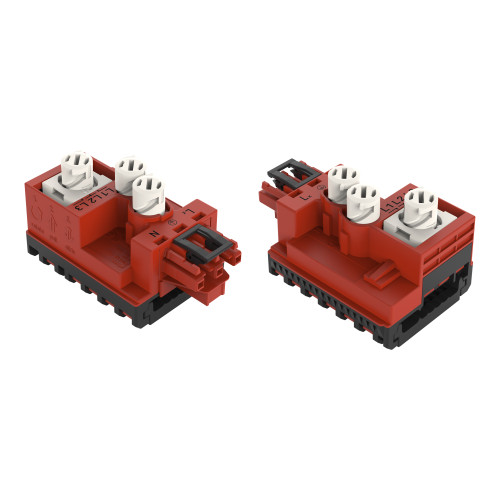

Tap-off module, for flat cable, 5 x 2.5 mm² + 2 x 1.5 mm², red

Manufacturer's No: 772-269     Manufacturer: WAGO
Tap-off module, for flat cable, 5 x 2.5 mm² + 2 x 1.5 mm², red

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • Tap-off module for flat cable
  • 3-pole configuration
  • Accommodates 5 x 2.5 mm² + 2 x 1.5 mm² cables
  • Cod. P designation
  • Cable connection on the output side
  • Color: red


Product

Manufacturer Material ID -
772-269
Net Weight -
0.78kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Cable diameter -
- Millimetre
Pole codification -
UN
Connection cross section (fine-strand) -
- Square millimetre
Connection cross section (solid-core) -
- Square millimetre
Colour housing -
Black
Locking mechanism -
None
Material housing -
Polyamide (PA)
Degree of protection (IP) -
IP20
Colour coding/contact insert -
Red
Connection round cable -
Spring clamp connection
Contact material -
CuSn
Degree of protection (IP rating) -
IP20
Fire load -
0.50917 Kilowatthour
Halogen free -
Height -
46.5 Millimetre
Housing colour -
Red
Housing material -
Polyamide (PA)
Length -
79 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Branch
Number of poles -
3
Phase pickup -
Selectable
Rated current -
25 Ampere
Rated voltage -
250 Volt
Type of integrated switching -
None
Type of locking -
Integrated in plug-in connector
Width -
49 Millimetre
