772-271

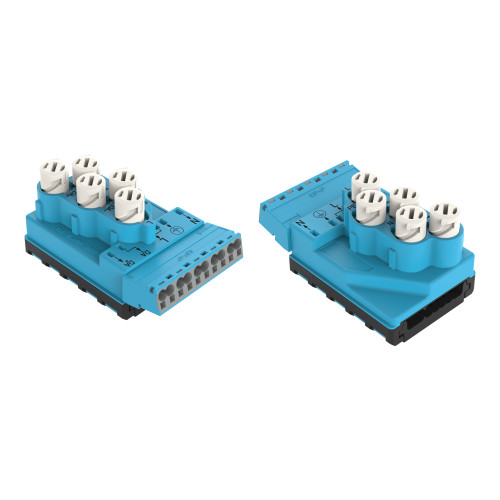

Supply module, 5 x 2.5 mm², 5-pole, blue

Manufacturer's No: 772-271     Manufacturer: WAGO
Supply module, 5 x 2.5 mm², 5-pole, blue

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£18.38
  • Supply module with 5 x 2.5 mm² and 5-pole configuration
  • Strain relief housing included
  • Cod. I designation
  • Strain relief housing accommodates up to 4.00 mm² wires
  • Color: blue


Product

Manufacturer Material ID -
772-271
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
10
UNSPSC -
39121410

Technical Specification

Pole codification -
UN
Phase pickup -
UN
Colour housing -
Black
Locking mechanism -
None
Material housing -
Polyamide (PA)
Degree of protection (IP) -
IP20
Colour coding/contact insert -
Blue
Cable diameter -
9 Millimetre
Connection cross section (fine-strand) -
0.5 Square millimetre
Connection cross section (solid-core) -
0.5 Square millimetre
Connection round cable -
Spring clamp connection
Contact material -
CuSn
Degree of protection (IP rating) -
IP20
Fire load -
0.61667 Kilowatthour
Halogen free -
Height -
46.5 Millimetre
Housing colour -
Blue
Housing material -
Polyamide (PA)
Length -
82.5 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Power supply system
Number of poles -
5
Rated current -
25 Ampere
Rated voltage -
400 Volt
Type of integrated switching -
None
Type of locking -
None
Width -
50 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£18.38
