773-116

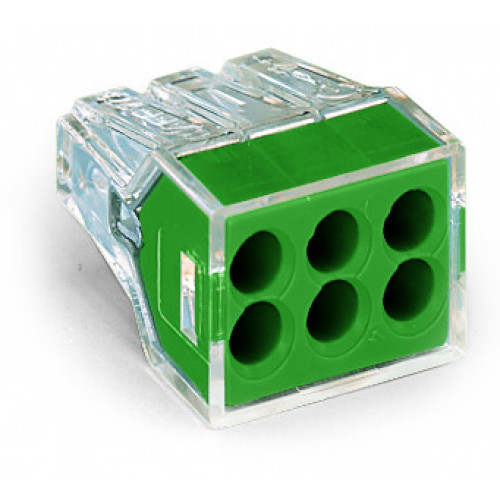

PUSH WIRE® connector for junction boxes, for solid and stranded conductors, max. 2.5 mm², transparent

Manufacturer's No: 773-116     Manufacturer: WAGO
PUSH WIRE® connector for junction boxes, for solid and stranded conductors, max. 2.5 mm², transparent

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • PUSH WIRE® connector for junction boxes
  • For solid and stranded conductors up to 2.5 mm²
  • 6-conductor capacity
  • Transparent housing with green cover
  • Maximum surrounding air temperature: 60°C


Product

Manufacturer Material ID -
773-116
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
UNSPSC -
39121402

Technical Specification

Cable diameter -
- Millimetre
Conductor cross section flexible (fine-strand) with cable end sleeve -
- Square millimetre
AWG-range -
12
Colour -
Colourless
Conductor cross section solid (solid, stranded) -
0.75 Square millimetre
Nominal cross section -
1.5 Square millimetre
Nominal current -
24 Ampere
Nominal voltage -
400 Volt
Number of clamp positions -
6
Suitable for solid core -
Transparent -
