774-9993/006-301

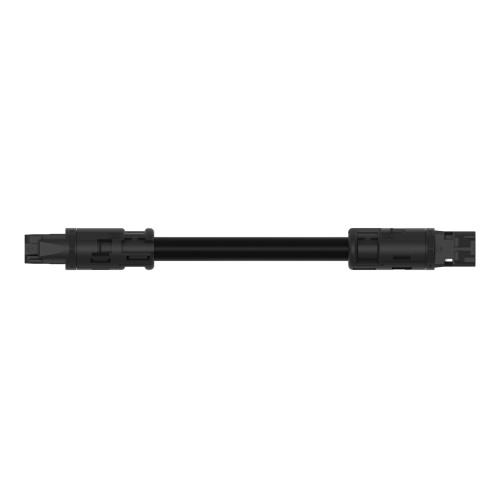

pre-assembled interconnecting cable, Eca, Socket/plug, black

Manufacturer's No: 774-9993/006-301     Manufacturer: WAGO
pre-assembled interconnecting cable, Eca, Socket/plug, black

Availability On Request

POA
  • Pre-assembled interconnecting cable
  • Eca rated
  • Socket/plug type
  • 3-pole configuration
  • Cod. A coding
  • Cable type: H05VV-F 3G 1.5 mm²
  • Length: 3 meters
  • Wire diameter: 1.50 mm²
  • Color: Black


Product

Manufacturer Material ID -
774-9993/006-301
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Strip length -
- Millimetre
Dismantle length -
- Millimetre
Nominal cross section conductor -
1.5 Square millimetre
Colour housing -
Black
Locking mechanism -
Separate
Colour outer sheath -
Black
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Conductor end treatment -
Ultrasonic compressed wire ends
Cable diameter -
7.4 Millimetre
Cable permanent temperature-resistant to -
70 Degrees celsius
Cable type -
H05VV-F
Colour coding/contact insert -
Black
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
24.604248 Kilowatthour
Housing colour -
Black
Housing material -
Polyamide (PA)
Insulating piece permanent temperature-resistant -
105 Degrees celsius
Max. operation temperature at conductor -
85 Degrees celsius
Mechanical coding -
Nominal cross sectional area of conductor -
1.5 Square millimetre
Number of poles -
3
Pole codification -
L, N, PE
Pollution degree -
3
Rated current -
16 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath colour -
Black
Surface finish contacts -
Tinned
Total length -
3000 Millimetre
Type of finished cable -
Connecting cable
Type of locking -
Separate
Type side 1 -
Bus
Type side 2 -
Plug

Availability On Request

POA
