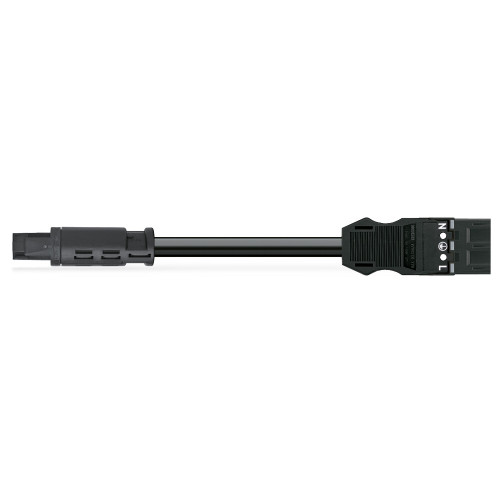

774-9993/1517-501

pre-assembled adapter cable, Eca, Socket/plug MIDI, 3-pole, Cod. A, H05Z1Z1-F 3G 2.5 mm, 5 m, 2, 50 m

Manufacturer's No: 774-9993/1517-501     Manufacturer: WAGO
pre-assembled adapter cable, Eca, Socket/plug MIDI, 3-pole, Cod. A, H05Z1Z1-F 3G 2.5 mm, 5 m, 2, 50 m

Availability Back Order

POA
  • Pre-assembled MIDI adapter cable
  • Socket/plug type: 3-pole
  • Cable length: 5 meters
  • Wire gauge: 2.5 mm²
  • Cable color: Black
  • Conforms to H05Z1Z1-F 3G standards

Accessories

Locking lever, for flying leads, for manual operation, black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-101
Price £0.16
Back Order

Locking lever, for flying leads, for manual operation, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-121
Price £0.16
Back Order

Locking lever, for flying leads, for tool operation, black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-111
Price £0.16
Back Order

Locking lever, for flying leads, for tool operation, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-131
Price £0.16
Back Order

Lockout cap, for plugs, 5-pole, separable, yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-360
Price £0.68
Back Order


Product

Manufacturer Material ID -
774-9993/1517-501
Net Weight -
0.75kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Strip length -
- Millimetre
Dismantle length -
- Millimetre
Nominal cross section conductor -
2.5 Square millimetre
Colour housing -
Black
Locking mechanism -
Separate
Colour outer sheath -
Black
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Conductor end treatment -
Ultrasonic compressed wire ends
Cable diameter -
9.2 Millimetre
Cable permanent temperature-resistant to -
70 Degrees celsius
Cable type -
H05Z1Z1-F
Colour coding/contact insert -
Black
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
41.309287 Kilowatthour
Halogen free -
Housing colour -
Black
Housing material -
Polyamide (PA)
Insulating piece permanent temperature-resistant -
105 Degrees celsius
Max. operation temperature at conductor -
85 Degrees celsius
Mechanical coding -
Nominal cross sectional area of conductor -
2.5 Square millimetre
Number of poles -
3
Pole codification -
L, N, PE
Pollution degree -
3
Rated current -
20 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath colour -
Black
Surface finish contacts -
Tinned
Total length -
5000 Millimetre
Type of finished cable -
Other
Type of locking -
Separate
Type side 1 -
Bus
Type side 2 -
Plug

Availability Back Order

POA
