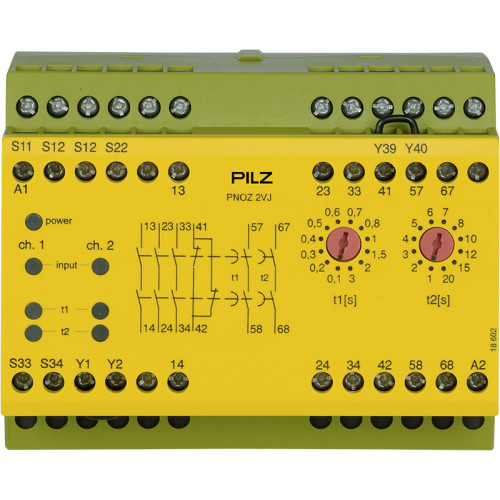

774012

Safety relay (standalone) inputs: 1/2-channel wiring without detection of shorts across contacts

Manufacturer's No: PNOZ 2VJ 24VDC 3n/o 1n/c 2n/o t     Manufacturer: Pilz
Safety relay (standalone) inputs: 1/2-channel wiring without detection of shorts across contacts

Availability Available to order

£495.23
  • Safety relay (standalone)
  • Inputs: 1/2-channel wiring without detection of shorts across contacts
  • Outputs: 3 N/O, 1 N/C, 2 N/O t-d
  • Operating voltage: -24 V DC (Japan)
  • Width: 112.5 mm
  • Screw terminals integrated
  • Monitoring of E-STOP, safety gates, feedback loop
  • Two independently adjustable delay-on de-energization contacts
  • Release time: 12 levels from 1 - 20 seconds and 0.1 - 3 seconds


Product

Manufacturer Material ID -
PNOZ 2VJ 24VDC 3n/o 1n/c 2n/o t
Net Weight -
0.62kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Model -
Basic device
Number of outputs, safety related, undelayed, with contact -
3
Rail mounting possible -
Suitable for monitoring of magnetic switches -
Suitable for monitoring of proximity switches -
Suitable for monitoring of emergency-stop circuits -
Suitable for monitoring of position switches -
Suitable for monitoring of valves -
Thumbnail of product picture -
Medien_800/Pictures_800/774012_800.jpg
Depth -
121 Millimetre
Height -
87 Millimetre
Type of electric connection -
Screw connection
Width -
112.5 Millimetre
With approval for TÜV -
With feedback circuit -
Pilz
