774330

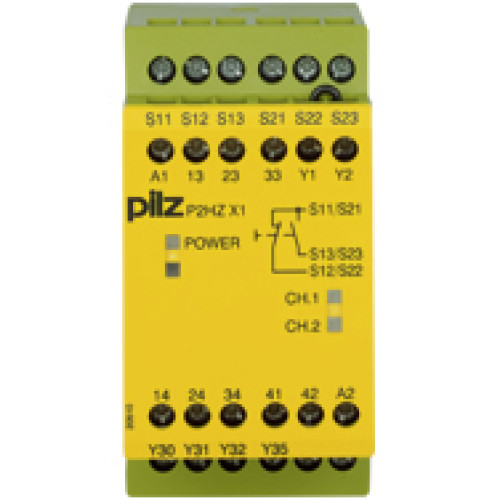

Safety relay (standalone) Inputs: 1 N/O, 1 N/C per pushbutton Outputs: 3 N/O, 1 N/C, 2 semiconductor UB 24 V AC, width: 45 mm, int

Manufacturer's No: P2HZ X1 24VAC 3n/o 1n/c     Manufacturer: Pilz
Safety relay (standalone) Inputs: 1 N/O, 1 N/C per pushbutton Outputs: 3 N/O, 1 N/C, 2 semiconductor UB 24 V AC, width: 45 mm, integral screw terminals, two-hand control device, monitoring the simulta

Availability Back Order

£510.09
  • Safety relay (standalone)
  • Inputs: 1 N/O, 1 N/C per pushbutton
  • Outputs: 3 N/O, 1 N/C, 2 SC
  • Control voltage: 24 V AC
  • Width: 45 mm
  • Screw terminals integrated
  • Two-hand control relay
  • Simultaneity monitoring with two-hand pushbutton


Product

Manufacturer Material ID -
P2HZ X1 24VAC 3n/o 1n/c
Net Weight -
0.39kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rail mounting possible -
Type of switch function of the inputs -
Change-over contact
Depth -
121 Millimetre
Height -
87 Millimetre
Supply voltage DC -
24 Volt
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC
Width -
45 Millimetre
With approval according to UL -
With approval for TÜV -
Pilz

Availability Back Order

£510.09
