774790

Safety relay (standalone) inputs: 1/2-channel wiring without detection of shorts across contacts

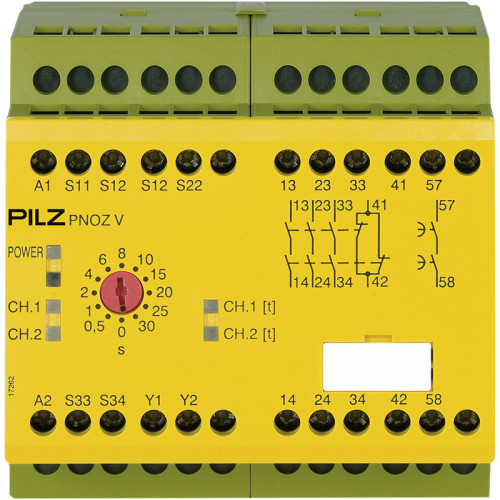

Manufacturer's No: PNOZ V 30s 24VDC 3n/o 1n/c 1n/o t     Manufacturer: Pilz
Safety relay (standalone) inputs: 1/2-channel wiring without detection of shorts across contacts

Availability Available to order

£349.05
  • Safety relay (standalone)
  • Inputs: 1/2-channel wiring without detection of shorts across contacts
  • Outputs: 3 N/O, 1 N/C, 1 N/O t-d
  • Automatic/manual start
  • Supply Voltage (UB): 24 V DC
  • Width: 90 mm
  • Screw terminals integrated
  • E-STOP monitoring
  • Safety gates
  • Delay-on de-energisation contact with adjustable delay time in 12 levels from 0.05 to 30 seconds


Product

Manufacturer Material ID -
PNOZ V 30s 24VDC 3n/o 1n/c 1n/o t
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Model -
Basic device
Release-delay -
0.1 Second
Rail mounting possible -
Suitable for monitoring of magnetic switches -
Suitable for monitoring of proximity switches -
Suitable for monitoring of emergency-stop circuits -
Suitable for monitoring of position switches -
Suitable for monitoring of valves -
Performance level acc. to EN ISO 13849-1 -
Level d
SIL according to IEC 61508 -
1
Thumbnail of product picture -
Medien_800/Pictures_800/774790_800.jpg
Depth -
121 Millimetre
Height -
87 Millimetre
Type of electric connection -
Screw connection
Width -
90 Millimetre
With approval for TÜV -
With feedback circuit -
Pilz

Availability Available to order

£349.05
