2CPX077811R9999

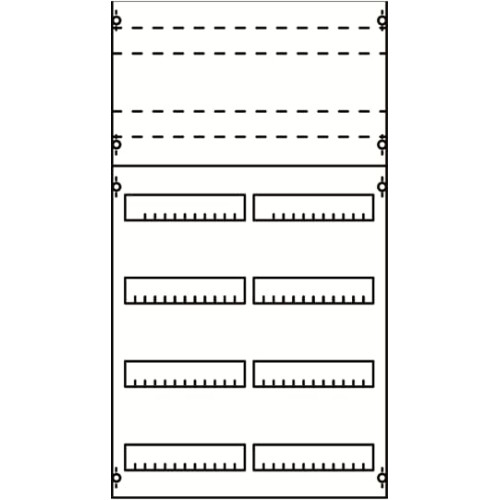

2V2K-150 DIN rail devices and DIN rail terminals 900 mm x 500 mm x 120 mm , 4 , 2

Manufacturer's No: 77811     Manufacturer: ABB
2V2K-150 DIN rail devices and DIN rail terminals 900 mm x 500 mm x 120 mm , 4 , 2

Availability On Request

£450.30
  • 2V2K-150 DIN rail devices and DIN rail terminals
  • Interior fitting system for distribution panels
  • Dimensions: 900 mm x 500 mm x 120 mm
  • Grid unit: 6 GU = 900 mm
  • Panel width: 2 = 500 mm
  • 144 Space units with row distance of 150 mm
  • DIN rail size: 35 x 15 mm with perforation for wire holders
  • Covers made of plastic with 90 degree press and turn closure
  • RAL 7035 color
  • Design of the cover: with cut-out, usable for cabinet depth of 120 mm

Read more

  • Distribution panels or combinations must match the grid units of the cabinets
  • For floor standing and switch gear cabinets, two panels must be installed side by side
  • EDF profile rails included in the delivery package


Product

Manufacturer Material ID -
77811
Net Weight -
5.72kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Depth -
120 Millimetre
Height -
900 Millimetre
Number of DIN rails -
4
Number of modular spacings per DIN-rail -
24
Type of covering -
With notch
Width -
500 Millimetre
With cover -
ABB

Availability On Request

£450.30
