784-613

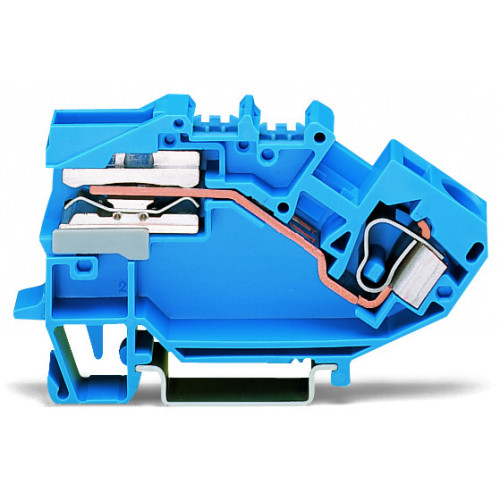

1-conductor N-disconnect terminal block, 10 mm², CAGE CLAMP®, blue

Manufacturer's No: 784-613     Manufacturer: WAGO
1-conductor N-disconnect terminal block, 10 mm², CAGE CLAMP®, blue

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£4.17
  • Terminal block type: 1-conductor N-disconnect
  • Wire size capacity: 10 mm²
  • Connection method: CAGE CLAMP®
  • Color: Blue
  • Maximum wire size: 10.00 mm²


Product

Manufacturer Material ID -
784-613
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
PL
Minimum Order Quantity -
25
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Length -
82.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
10 Millimetre
Height at lowest possible mounting height -
43.5 Millimetre
Colour -
Blue
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Connecting plate required -
Depth -
43.5 Millimetre
Height -
82.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
5V
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions -
1
Operating temperature -
105 Degrees celsius
Rated current In -
57 Ampere
Rated voltage -
400 Volt
Suitable for N-busbar -
3x10 mm
Type of electric connection -
Spring clamp connection
Width -
10 Millimetre
