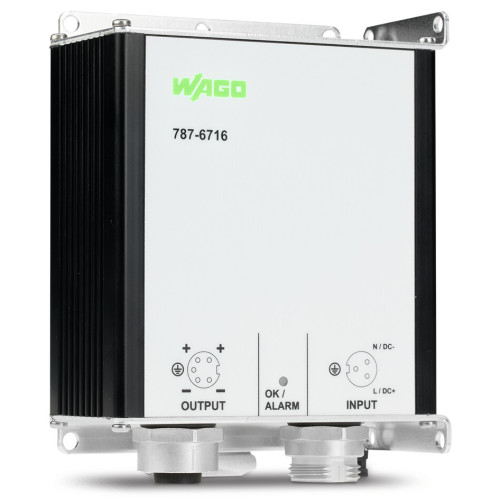

787-6716

Switched-mode power supply, 1-phase, 24 VDC output voltage

Manufacturer's No: 787-6716     Manufacturer: WAGO
Switched-mode power supply, 1-phase, 24 VDC output voltage

Availability On Request

£362.42
List Price £362.42
  • Switched-mode power supply
  • 1-phase
  • 24 VDC output voltage
  • 4 A output current
  • PowerBoost


Product

Manufacturer Material ID -
787-6716
Net Weight -
1.10kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
CZ
UNSPSC -
32121704

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Built-in width -
- Millimetre
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP67
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP67
Depth -
111 Millimetre
Direct mounting possible -
Height -
141 Millimetre
Max. output current 1 -
4 Ampere
Modular version -
Nominal value output current 1 -
4 Ampere
Nominal value output voltage 1 -
24 Volt
Power output -
96 Watt
Rated supply voltage at AC 50 Hz -
90 Volt
Rated supply voltage at AC 60 Hz -
90 Volt
Rated supply voltage at DC -
90 Volt
Short-circuit-proof -
Stabilized -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
AC/DC
Wall mounting possible -
Width -
54 Millimetre
Width in number of modular spacings -
7

Availability On Request

£362.42
List Price £362.42
