788-312/003-000

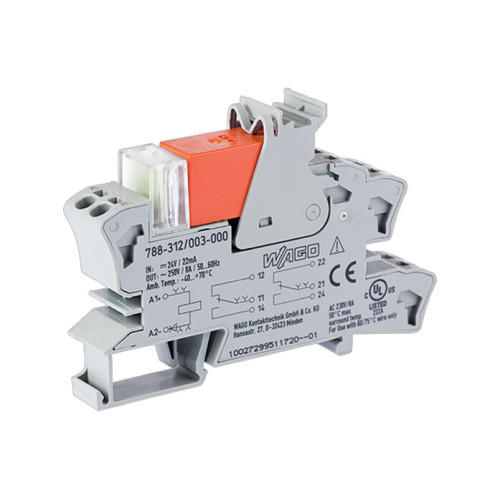

Relay module, Nominal input voltage: 24 VDC, 2 changeover contacts

Manufacturer's No: 788-312/003-000     Manufacturer: WAGO
Relay module, Nominal input voltage: 24 VDC, 2 changeover contacts

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£10.49
  • Relay module
  • Nominal input voltage: 24 VDC
  • 2 changeover contacts
  • Limiting continuous current: 8 A
  • Red status indicator
  • Module width: 15 mm


Product

Manufacturer Material ID -
788-312/003-000
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
86 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
86 Millimetre
Nominal current -
8 Ampere
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Spring clamp connection
Type of switch contact -
Single contact
Voltage type for actuating -
DC
Width -
15 Millimetre
With LED indication -
