788-546

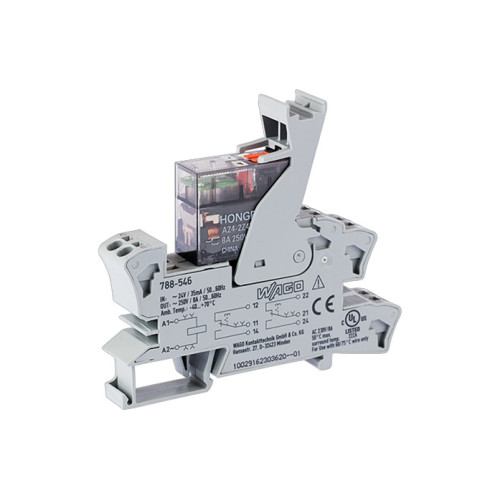

Relay module, Nominal input voltage: 24 VAC, 2 changeover contacts

Manufacturer's No: 788-546     Manufacturer: WAGO
Relay module, Nominal input voltage: 24 VAC, 2 changeover contacts

Availability Available to order

£14.05
  • Relay module for 24 VAC systems
  • 2 changeover contacts
  • Limiting continuous current: 8 A
  • Manual operation
  • Red status indicator
  • Module width: 15 mm


Product

Manufacturer Material ID -
788-546
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85044082
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Degree of protection (IP) -
IP20
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
86 Millimetre
Drive, polarization -
Polarity free
Drive, switching attitude -
Mono stable
Height -
86 Millimetre
Nominal current -
8 Ampere
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Type of electric connection -
Spring clamp connection
Type of switch contact -
Single contact
Voltage type for actuating -
AC
Width -
15 Millimetre
With LED indication -
