788-607

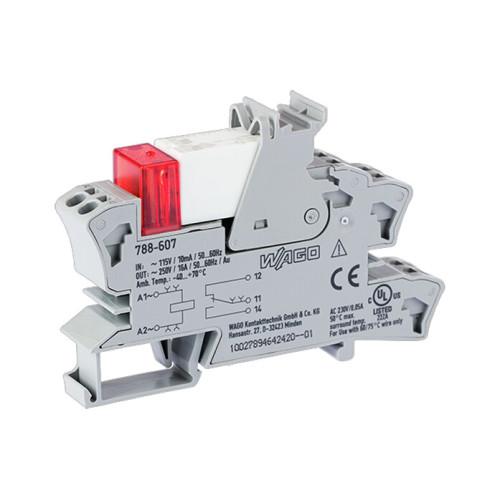

Relay module, Nominal input voltage: 115 VAC, 1 changeover contact, gray

Manufacturer's No: 788-607     Manufacturer: WAGO
Relay module, Nominal input voltage: 115 VAC, 1 changeover contact, gray

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.50

£18.32
  • Relay module with nominal input voltage of 115 VAC
  • 1 changeover contact with limiting continuous current of 16 A
  • Gold contacts for improved durability
  • Red status indicator for easy monitoring
  • Compact module with a width of 15 mm
  • Terminal capacity of 2.50 mm²
  • Color: gray


Product

Manufacturer Material ID -
788-607
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
115 Volt
Rated control supply voltage Us at AC 60HZ -
115 Volt
Degree of protection (IP) -
IP20
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
86 Millimetre
Drive, polarization -
Polarity free
Drive, switching attitude -
Mono stable
Height -
86 Millimetre
Nominal current -
16 Ampere
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at AC 50 Hz -
115 Volt
Rated control supply voltage at AC 60 Hz -
115 Volt
Type of electric connection -
Spring clamp connection
Type of switch contact -
Single contact
Voltage type for actuating -
AC
Width -
15 Millimetre
With LED indication -
