789-329

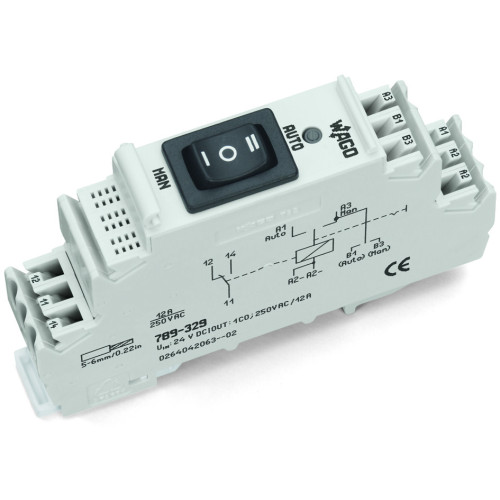

Relay module, Nominal input voltage: 24 VDC, 1 changeover contact

Manufacturer's No: 789-329     Manufacturer: WAGO
Relay module, Nominal input voltage: 24 VDC, 1 changeover contact

Availability Back Order

£48.73
  • Relay module for lamp loads
  • Nominal input voltage: 24 VDC
  • 1 changeover contact
  • Limiting continuous current: 12 A
  • Manual/Off/Auto switch
  • Red status indicator
  • Module width: 18 mm


Product

Manufacturer Material ID -
789-329
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85044082
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Mounting method -
DIN rail
Function -
Other
Built-in depth -
55.00 Millimetre
Rated current -
12.00 Ampere
Width in number of modular spacings -
1.00
Control voltage 1 -
24.00 Volt
Type of control voltage 1 -
DC
Frequency control voltage 1 -
50.00 Hertz
Voltage type of supply voltage -
AC
Supply voltage -
250.00 Volt
Max. incandescent lamp load -
2200.00 Watt
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
90 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
90 Millimetre
Nominal current -
12 Ampere
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Spring clamp connection
Type of switch contact -
Single contact
Voltage type for actuating -
DC
Width -
17.5 Millimetre
With LED indication -

Availability Back Order
