7KM22002EA401CA1

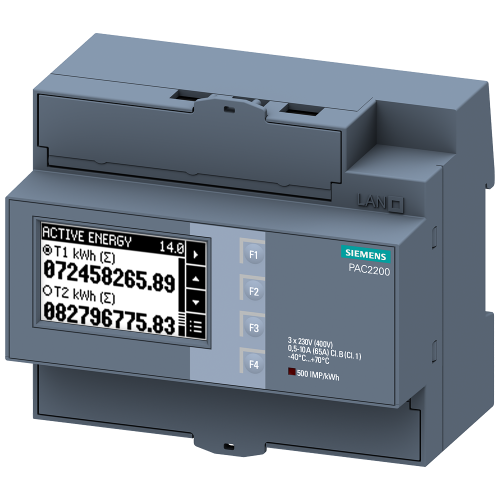

SENTRON 7KM PAC2200 power monitoring device, 3-phase, 65 A, DIN rail, M-Bus

Manufacturer's No: 7KM2200-2EA40-1CA1     Manufacturer: Siemens
SENTRON 7KM PAC2200 power monitoring device, 3-phase, 65 A, DIN rail, M-Bus

Availability On Request

£220.97
  • Device: SENTRON 7KM PAC2200
  • Measurement: 3-phase
  • Voltage: Line-Line: 400 V, Line-Neutral: 230 V
  • Current: 65 A
  • Display: LCD
  • Communication: M-Bus
  • Energy Measurement: Apparent/Active/Reactive
  • Installation: Standard rail
  • Power Source: Self-powered
  • Terminals: Screw-type


Product

Manufacturer Material ID -
7KM2200-2EA40-1CA1
Net Weight -
0.53kg

Additional Product Information

Commodity Code -
90303330
Country of Origin -
HU
RoHs Compliance -
Yes
UNSPSC -
41113637

Technical Specification

Ampere meter -
Blind power meter -
Frequency meter -
Pulse counter -
Voltmeter -
Effective power measurement device -
Degree of protection (IP rating) -
IP40
Energy type -
Effective power and blind power
Escapement mechanism -
Interface type -
M-bus
Max. current (Imax) -
65 Ampere
Model -
Direct measurement
Nominal current (In) -
65 Ampere
Nominal voltage (Un) L-L -
3 Volt
Nominal voltage (Un) N-L -
3 Volt
Number of positions total (counter) -
12
Pole type -
Three conductor/four conductor
Pulse output -
Electrical
Pulse type -
S0
Suitable for -
Purchase/supply
Tariff type -
Two-tariff
Type of indicator -
Digital
Type of meter -
Electronic
Width in number of modular spacings -
6
With lock code -
