7KM22002EA401HA1

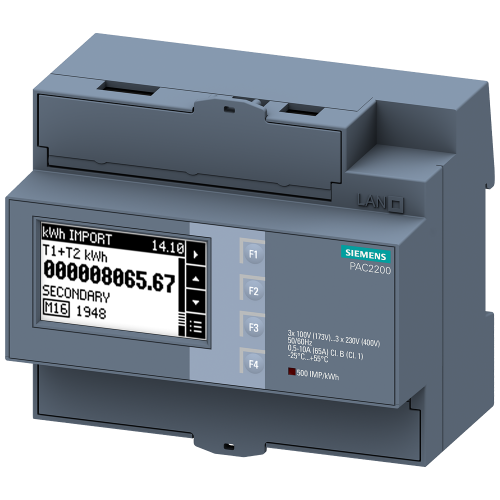

SENTRON 7KM PAC2200 power monitoring device, 3-phase, 65 A, DIN rail, Modbus RTU, MID

Manufacturer's No: 7KM2200-2EA40-1HA1     Manufacturer: Siemens
SENTRON 7KM PAC2200 power monitoring device, 3-phase, 65 A, DIN rail, Modbus RTU, MID

Availability On Request

£246.70
  • Measuring device: SENTRON 7KM PAC2200
  • Voltage: Line-Line: 400 V, Line-Neutral: 230 V
  • Current: 65 A
  • Installation: Standard rail
  • Phase: 3-phase
  • Communication: Modbus RTU + MID
  • Energy measurement: Apparent/Active/Reactive
  • Power supply: Self-powered
  • Connection: Screw terminals


Product

Manufacturer Material ID -
7KM2200-2EA40-1HA1
Net Weight -
0.54kg

Additional Product Information

Commodity Code -
90303330
Country of Origin -
HU
RoHs Compliance -
Yes
UNSPSC -
41113637

Technical Specification

Ampere meter -
Blind power meter -
Frequency meter -
Pulse counter -
Voltmeter -
Effective power measurement device -
Approval -
Measuring Instruments Directive
Calibrated -
Degree of protection (IP rating) -
IP40
Energy type -
Effective power and blind power
Escapement mechanism -
Max. current (Imax) -
65 Ampere
Model -
Direct measurement
Nominal current (In) -
65 Ampere
Nominal voltage (Un) L-L -
3 Volt
Nominal voltage (Un) N-L -
3 Volt
Number of positions total (counter) -
12
Pole type -
Three conductor/four conductor
Pulse output -
Electrical
Pulse type -
S0
Suitable for -
Purchase/supply
Tariff type -
Two-tariff
Type of indicator -
Digital
Type of meter -
Electronic
Width in number of modular spacings -
6
With lock code -
