7KT1200

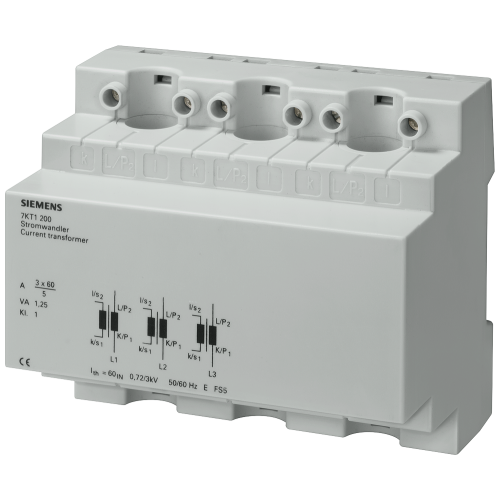

Current transformer AC 3x 60/5 A.

Manufacturer's No: 7KT1200     Manufacturer: Siemens
Current transformer AC 3x 60/5 A.

View 3D

Availability Back Order

£225.41
  • Type: Current transformer
  • AC Input: 3x 60/5 A


Product

Manufacturer Material ID -
7KT1200
Net Weight -
0.54kg

Additional Product Information

Commodity Code -
85044082
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

Width opening -
- Millimetre
Height opening -
- Millimetre
Accuracy class -
1
Primary rated current -
60 Ampere
Secondary connection -
Screw connection
Secondary rated apparent power -
1.25 Voltampere
Secondary rated current -
5 Ampere
Opening diameter -
13 Millimetre
Snap mounting -
Rated secondary apparent power -
1.25 Voltampere
Rated secondary current -
5 Ampere
Model -
Through-feed current converter
Number of primary inputs -
1
Over current limiting factor -
FS 5
Rated primary current -
60 Ampere

Availability Back Order

£225.41
