7ML54250HB203CE1

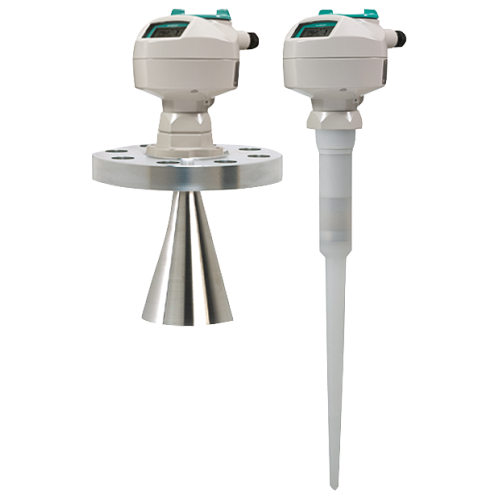

SITRANS LR 200, Flange Adapter Horn Antenna Version 2-wire, 6 GHz pulse radar level transmitter for

Manufacturer's No: 7ML5425-0HB20-3CE1     Manufacturer: Siemens
SITRANS LR 200, Flange Adapter Horn Antenna Version 2-wire, 6 GHz pulse radar level transmitter for

Availability Back Order

£3,547.00
  • Type: Radar level transmitter with horn
  • Measurement Range: 20 m (66 ft)
  • Application: Liquids and slurries
  • Antenna Material: 316L stainless steel with PTFE cone emitter
  • Process Connection: 4" ASME flanges, 150 Ib, flat faced
  • Communication/Output: 4-20mA HART
  • Process Seal/Gasket: FKM (-40 to +200°C)
  • Enclosure/Cable Inlet: Aluminum, Epoxy painted, 2 x M20 x 1.5
  • Interface: Siemens LUI
  • Horn Size/Waveguide: 100 mm (4") horn

Read more

  • Approvals: Intrinsically Safe, ATEX II 1G Ex ia IIC T4 Ga, UKEX II 1G Ex ia IIC T4 Ga, IECEx Ex ia IIC T4 Ga, INMETRO Ex ia IIC T4 Ga, IP67/IP68, EAC Ex 0Ex ia IIC T4 Ga X, CE, UKCA, RED, RCM, EAC
  • Pressure Rating: 0.5 bar (7.25 psi) maximum


Product

Manufacturer Material ID -
7ML5425-0HB20-3CE1
Net Weight -
2.00kg

Additional Product Information

Commodity Code -
90261029
Country of Origin -
CA
Export Control Regulations -
EAR99I / N
UNSPSC -
43233603

Availability Back Order

£3,547.00
