7ML54310AE101DC1

SITRANS LR250, 25 GHz pulse level radar fill level transmitter in two-wire technology for the contin

Manufacturer's No: 7ML5431-0AE10-1DC1     Manufacturer: Siemens
SITRANS LR250, 25 GHz pulse level radar fill level transmitter in two-wire technology for the contin

Availability Back Order

£3,282.00

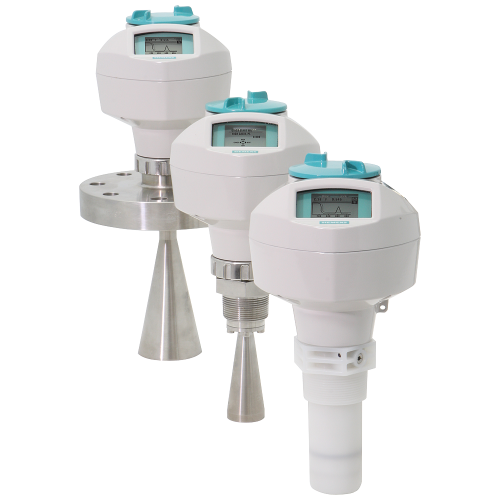

  • SITRANS LR250 Radar level transmitter
  • Continuous, non-contact measurement
  • 20 m (66 ft) range for liquids and slurries
  • Process Connection and Antenna Material: 316L stainless steel, PTFE emitter, FKM seal
  • Process Connection Type: Threaded connections 316L: R 2" (BSPT, EN 10226-1)
  • Communication/Output: PROFIBUS PA
  • Enclosure/Cable inlet: Aluminum, 2 x M20 x 1.5
  • Antenna Version: 4 inch Horn (fits 4 inch ASME or DN 100 nozzles)
  • Approvals: ATEX, UKEX, IECEx, INMETRO, EAC, CE, UKCA, RED, RCM
  • Pressure Rating: 0.5 bar (7.5 psi g) max


Product

Manufacturer Material ID -
7ML5431-0AE10-1DC1
Net Weight -
10.00kg

Additional Product Information

Commodity Code -
90261029
Country of Origin -
CA
Export Control Regulations -
EAR99I / N
UNSPSC -
43233603

Availability Back Order

£3,282.00
Sign in or Register for customer prices.

Additional Information

Did you know, we are an entrusted Siemens approved partner?
