7ML54400HB000AA1

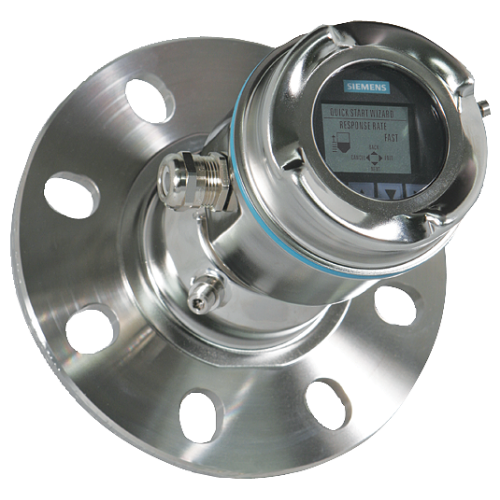

SITRANS LR560: A 2-wire, 78 GHz FMCW radar level transmitter for continuous monitoring of solids and

Manufacturer's No: 7ML5440-0HB00-0AA1     Manufacturer: Siemens
SITRANS LR560: A 2-wire, 78 GHz FMCW radar level transmitter for continuous monitoring of solids and

Availability Back Order

£2,759.00
  • Type: Radar level transmitter with flush lens antenna
  • Measurement Range: 100 m (328 ft)
  • Process Temperature Range: -40°C to +100°C
  • Process Connection: Universal flat-faced flange fits ANSI/DIN/JIS flanges: 4" / 100 mm
  • Enclosure: Stainless Steel with cable inlet, 1 X M20 x 1.5 (plastic gland included)
  • Pressure Rating: 0.5 bar g (7.5 psi g) maximum
  • Output/Communication: 4 to 20 mA, HART
  • Approvals: FM, cCSAus, IC, FCC, CE, UKCA, RED, RCM
  • Local Display Interface: Without LDI


Product

Manufacturer Material ID -
7ML5440-0HB00-0AA1
Net Weight -
6.00kg

Additional Product Information

Commodity Code -
90261029
Country of Origin -
CA
Export Control Regulations -
3A991X / N
UNSPSC -
43233603

Availability Back Order

£2,759.00
