7ML56300BA001DB0

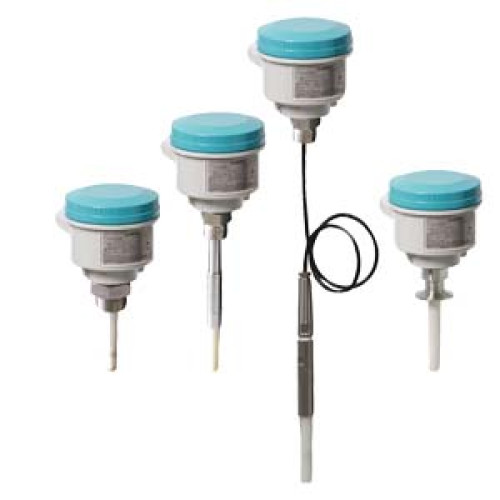

Pointek CLS200 RF Capacitance point level switch, rod design. Detects level and interface in liquids, solids, slurries, and foam.

Manufacturer's No: 7ML5630-0BA00-1DB0     Manufacturer: Siemens
Pointek CLS200 RF Capacitance point level switch, rod design. Detects level and interface in liquids, solids, slurries, and foam. Adjustable, 5.5 m (18.04 ft), insertion, adaptable sensitivity, with

Availability On Request

£907.00
  • Product Name: Pointek CLS200 RF Capacitance Point Level Switch
  • Design: Rod design
  • Detection Capabilities:
    • Detects level and interface in liquids, solids, slurries, and foam
  • Adjustability:
    • Adjustable up to 5.5 m (18.04 ft) insertion
    • Adaptable sensitivity
    • Ability to tune out build-up on probe
  • Process Connection:
    • Threaded, 316L (1.4404) stainless steel
    • 1" NPT (Taper), ANSI/ASME B1.20.1
  • Probe Length:
    • Length from flange face
    • Threaded lengths include process thread
    • Compact: Threaded 120mm (4.72"), Flanged 98mm (3.86")
  • Thermal Isolator: Without thermal isolator
  • Wetted Seals: FKM
  • Probe Material:
    • 316L Stainless Steel with PVDF probe body
  • Approvals:
    • Flameproof Enclosure with IS Probe
    • CE, UKCA, RCM, ATEX, UKEX II 1/2G Ex ia/db
    • ATEX, UKEX II 1/2D Ex ia/tb

Read more

  • Enclosure and Lid:
    • Aluminum epoxy coated
    • 2 x M20 x 1.5 cable inlet
    • IP65 rating


Product

Manufacturer Material ID -
7ML5630-0BA00-1DB0
Net Weight -
2.00kg

Additional Product Information

Commodity Code -
90261029
Country of Origin -
CA
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
yes
UNSPSC -
43233603

Availability On Request

£907.00
