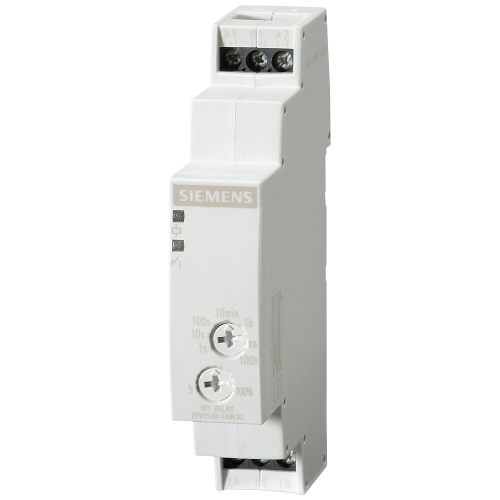

7PV15381AW30

Timing relay, electronic OFF delay with control signal, 1 change-over contact 7 time ranges, 0.05 s.

Manufacturer's No: 7PV1538-1AW30     Manufacturer: Siemens
Timing relay, electronic OFF delay with control signal, 1 change-over contact 7 time ranges, 0.05 s.

Availability On Request

£54.35
  • Timing relay with electronic OFF delay
  • 1 change-over contact
  • 7 time ranges from 0.05 seconds to 100 hours
  • Operating voltage: 12-240 V AC/DC
  • Equipped with LED
  • Screw terminal connections


Product

Manufacturer Material ID -
7PV1538-1AW30
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Nominal current -
- Ampere
Rated control supply voltage Us at AC 50HZ -
12 Volt
Rated control supply voltage Us at AC 60HZ -
12 Volt
Rated control supply voltage Us at DC -
12 Volt
Depth -
66.7 Millimetre
Height -
90 Millimetre
Number of outputs, delayed, change-over contact -
1
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Rated control supply voltage at AC 50 Hz -
12 Volt
Rated control supply voltage at AC 60 Hz -
12 Volt
Rated control supply voltage at DC -
12 Volt
Time range -
0.05 Second
Type of electric connection -
Screw connection
Voltage type for actuating -
AC/DC
Width -
17.5 Millimetre

Availability On Request

£54.35
