7KM22002EA401JB1

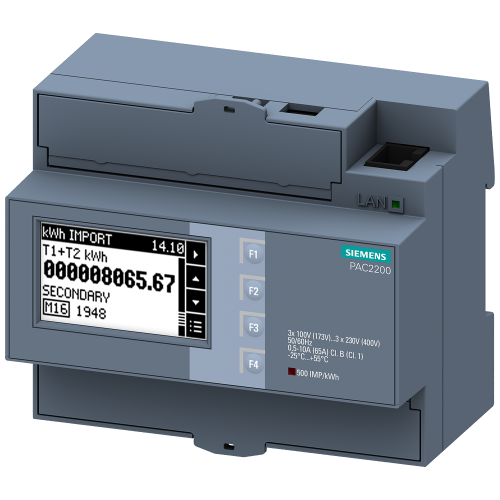

SENTRON 7KM PAC2200 power monitoring device, 3-phase, 65 A, DIN rail, Modbus TCP, MID, CLP

Manufacturer's No: 7KM2200-2EA40-1JB1     Manufacturer: Siemens
SENTRON 7KM PAC2200 power monitoring device, 3-phase, 65 A, DIN rail, Modbus TCP, MID, CLP

Availability On Request

£638.05
  • Measurement Device: SENTRON PAC2200-CLP
  • Voltage: L-L: 400V, L-N: 230V
  • Current: 65A
  • Installation: Direct DIN rail
  • Power: 6MW, 3-phase
  • Communication Interface: LAN, Modbus-TCP
  • Display: LCD
  • Approval: MID
  • Energy Measurement: Apparent/Active/Reactive
  • Memory: Certified load profile

Read more

  • Calibration: PTB-A50.7 compliant
  • Terminals: Screw terminals
  • Self-powered operation


Product

Manufacturer Material ID -
7KM2200-2EA40-1JB1
Net Weight -
0.54kg

Additional Product Information

Commodity Code -
90303370
Country of Origin -
HU
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
41113637

Technical Specification

Calibrated -
Degree of protection (IP rating) -
IP40
Energy type -
Effective power and blind power
Escapement mechanism -
Max. current (Imax) -
65 Ampere
Measuring type load profile -
Model -
Direct measurement
Nominal current (In) -
65 Ampere
Nominal voltage (Un) L-L -
3 Volt
Nominal voltage (Un) N-L -
3 Volt
Number of positions total (counter) -
12
Pole type -
Three conductor/four conductor
Pulse output -
Electrical
Pulse type -
S0
Suitable for -
Purchase/supply
Tariff type -
Two-tariff
Type of indicator -
Digital
Type of meter -
Electronic
Width in number of modular spacings -
6
With lock code -
