7LF6310

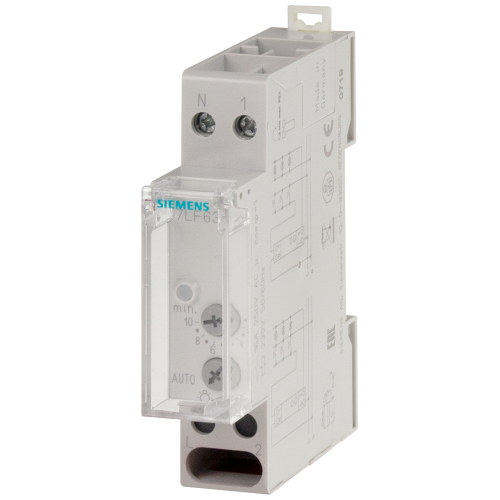

Stairwell light timer switch 230 V 1 NO 16 A 230 V/50 Hz

Manufacturer's No: 7LF6310     Manufacturer: Siemens
Stairwell light timer switch 230 V 1 NO 16 A 230 V/50 Hz

Availability On Request

£85.53
  • Stairwell light timer
  • 230V
  • 1 NO contact, 16A 250V 50Hz
  • Electronic timer with setting range of 0.5 to 10 minutes
  • Suitable for 3- or 4-wire circuits
  • Resettable
  • Maximum glow lamp current of 25mA
  • 1WE


Product

Manufacturer Material ID -
7LF6310
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
91070000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Control voltage 1 -
230 Volt
Frequency control voltage 1 -
50 Hertz
Function -
Electronic
Max. incandescent lamp load -
2000 Watt
Max. load fluorescent lamp -
1000 Voltampere
Max. load fluorescent lamp (Duo circuit) -
1000 Voltampere
Max. load fluorescent lamp (parallel compensated) -
1000 Voltampere
Max. switching power LED -
1000 Watt
Mounting method -
DIN rail
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
1
Pre-warning of switching-off -
None
Push button glow-lamp current -
50 Milliampere
Rated switch current -
16 Ampere
Recess depth -
64 Millimetre
Release-delay -
0.5 Minute
Repetitive -
Repetitive
Supply voltage -
230 Volt
Type of control voltage 1 -
AC
Voltage type of supply voltage -
AC
Width in number of modular spacings -
1
Wiring system -
3 and 4 wire configuration

Availability On Request

£85.53
