7LF6311

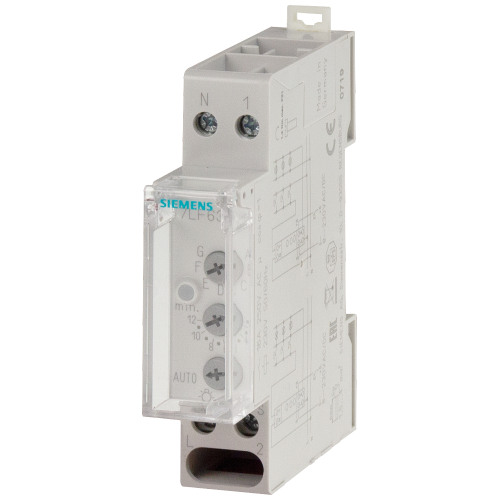

Stairwell light timer switch 230 V 1 NO 16 A 230 V/50 Hz, electronic

Manufacturer's No: 7LF6311     Manufacturer: Siemens
Stairwell light timer switch 230 V 1 NO 16 A 230 V/50 Hz, electronic

Availability On Request

£108.52
  • Stairwell light timer
  • 230V, 1 NO contact, 16A, 250V, 50Hz
  • Electronic timer with separate multi-voltage input: 8-230V AC/DC
  • 7 selectable functions
  • Setting range: 0.5-12 minutes
  • For 3- or 4-wire circuits
  • Resettable
  • Max glow lamp current: 50mA, 1W-E


Product

Manufacturer Material ID -
7LF6311
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
91070000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Control voltage 1 -
230 Volt
Control voltage 2 -
8 Volt
Frequency control voltage 1 -
50 Hertz
Frequency control voltage 2 -
50 Hertz
Function -
Electronic
Max. incandescent lamp load -
2000 Watt
Max. load fluorescent lamp -
1000 Voltampere
Max. load fluorescent lamp (Duo circuit) -
1000 Voltampere
Max. load fluorescent lamp (parallel compensated) -
1000 Voltampere
Max. switching power LED -
1000 Watt
Mounting method -
DIN rail
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
1
Pre-warning of switching-off -
Flickering
Push button glow-lamp current -
50 Milliampere
Rated switch current -
16 Ampere
Recess depth -
64 Millimetre
Release-delay -
0.5 Minute
Repetitive -
Repetitive + continuous light
Supply voltage -
230 Volt
Type of control voltage 1 -
AC
Voltage type of supply voltage -
AC
Width in number of modular spacings -
1
Wiring system -
3 and 4 wire configuration

Availability On Request

£108.52
