7MF08001KX110AD0

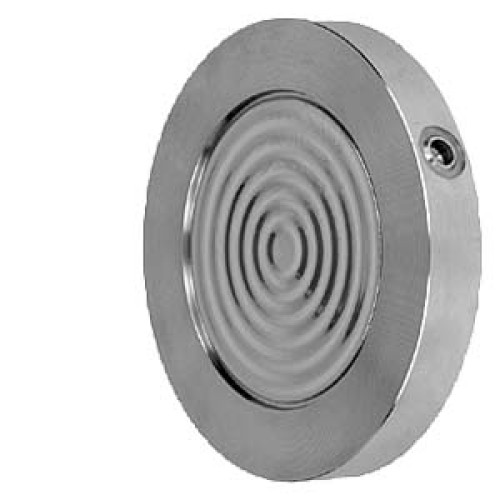

Remote seal, sandwich type, for gauge and absolute pressure transmitters (pressure series) ****************************** Please o

Manufacturer's No: 7MF0800-1KX11-0AD0     Manufacturer: Siemens
Remote seal, sandwich type, for gauge and absolute pressure transmitters (pressure series) ****************************** Please order he required transmitter with a separate position. System deliver

Availability On Request

£1,052.00
  • Remote seal, sandwich type, for gauge and absolute pressure transmitters (pressure series)
  • Please order the required transmitter separately.
  • System delivery time includes the delivery time of the transmitter and the remote seal.
  • Complies with ASME B16.5 standards.
  • Maximum permissible working pressure (MAWP) of the transmitter and diaphragm seal determines the nominal pressure rating (PN).
  • The lowest value (PN) is the maximum nominal pressure.
  • Size: 1", class 150...2500
  • Length: 1.6m (5.25ft)
  • Filled with Silicon Oil M5
  • Standard optimized temperature range: -40 to +140°C

Read more

  • Made of stainless steel 316L with PFA coating
  • Warning: Potential electrostatic charging hazard – refer to pressure transmitter operating instructions.
  • Without extension


Product

Manufacturer Material ID -
7MF0800-1KX11-0AD0
Net Weight -
30.00kg

Additional Product Information

Commodity Code -
90262020
Country of Origin -
FR
Export Control Regulations -
N / N
UNSPSC -
32151705

Availability On Request

£1,052.00
Sign in or Register for customer prices.

Additional Information
