7ML51101GD074AF3

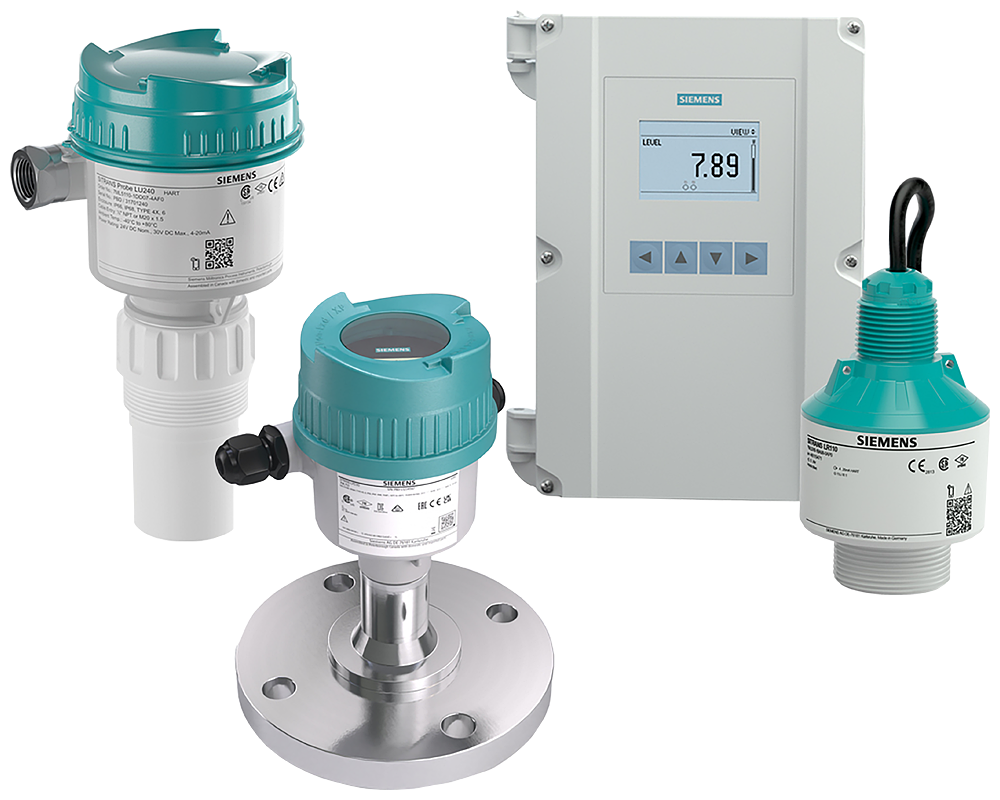

SITRANS Probe LU240 Ultrasonic level transmitter ideal for level, volume, and volume flow measurements. It works with liquids, slu

Manufacturer's No: 7ML5110-1GD07-4AF3     Manufacturer: Siemens
SITRANS Probe LU240 Ultrasonic level transmitter ideal for level, volume, and volume flow measurements. It works with liquids, slurries, and bulk m...

Availability Back Order

£1,063.00
  • Ideal for level, volume, and volume flow measurements of liquids, slurries, and bulk materials up to 12 m (40 ft)
  • Measurement range: 200 - 12000 mm (7.87 - 472.44 inch) with PVDF Copolymer wetted parts
  • Process connection: 2" NPT (Taper), ASME B1.20.1
  • Communications: HART (4 - 20 mA) for level, volume, and volume flow
  • Ingress protection: IP66, IP68, TYPE 4X, 6
  • Enclosure Type: Ordinary Locations/General Purpose (Non-Ex), CCSAUS, CE, UKCA, KC, RCM
  • Electrical connections/cable entries: 2 x M20 x 1.5 with Polyamide cable gland and blocking plug
  • Non-wetted parts: Plastic (PBT/PC material)
  • Local HMI with display and clear lid of PC material


Product

Manufacturer Material ID -
7ML5110-1GD07-4AF3
Net Weight -
1.25kg

Additional Product Information

Commodity Code -
90261029
Country of Origin -
CA
Export Control Regulations -
3A991X / N
UNSPSC -
43233603

Availability Back Order

£1,063.00
