804-103

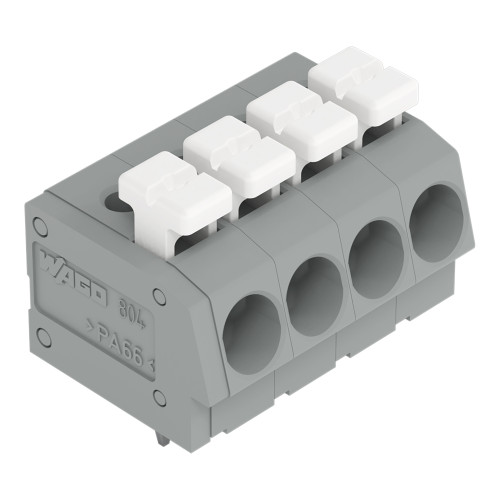

PCB terminal block, push-button, 2.5 mm², gray

Manufacturer's No: 804-103     Manufacturer: WAGO
PCB terminal block, push-button, 2.5 mm², gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.93
  • PCB terminal block for push-button applications
  • 3-pole design with pin spacing of 5 mm
  • Features Push-in CAGE CLAMP® for secure connections
  • Accommodates wires up to 2.5 mm²
  • Color: gray


Product

Manufacturer Material ID -
804-103
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CH
Minimum Order Quantity -
75
UNSPSC -
39121410

Technical Specification

Diameter connection pin -
- Millimetre
Degree of protection (IP), mounted -
UN
Colour housing -
Grey
Operation temperature -
-60 Degrees celsius
Angle PCB/conductor connection -
0°/180° (horizontal)
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Connectable conductor cross section solid-core -
0.25 Square millimetre
Connection type conductor -
Spring clamp connection
Connection type PCB -
Soldering connection
Height -
14.5 Millimetre
Housing colour -
Grey
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
3.6 Millimetre
Material connection surface -
Tin
Material insulation body -
Thermoplastic
Modular spacing connections -
5 Millimetre
Number of electrical connections -
3
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
24 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
320 Volt
Type of banding -
None
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.93
