8047679

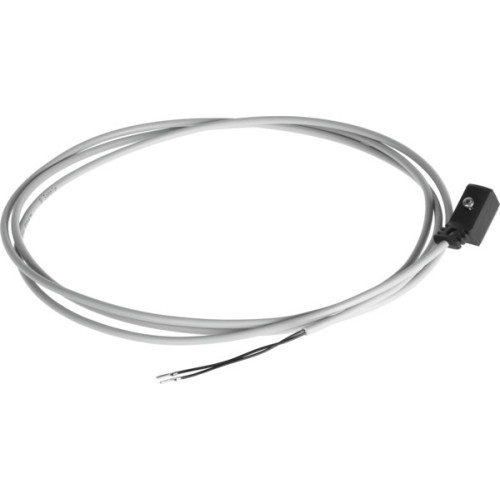

NEBV-Z4WA2L-R-E-2.5-N-LE2-S1 Connecting cable

Manufacturer's No: NEBV-Z4WA2L-R-E-2.5-N-LE2-S1     Manufacturer: Festo
NEBV-Z4WA2L-R-E-2.5-N-LE2-S1 Connecting cable

Availability Available to order

£18.86
  • Product: NEBV-Z4WA2L-R-E-2.5-N-LE2-S1 Connecting Cable
  • Socket Connection Pattern: ZC (metric screw), Angled 45°
  • Cable Length: 2.5 m
  • Cable Type: TPE-U(PUR), suitable for energy chains
  • Wire Size: 0.14 mm²
  • LED Signal Status: Yellow LED, DC
  • Additional Functions: Holding current reduction, Protective circuit
  • IP Rating: IP65
  • Operational Voltage Range DC: 20.4 V to 26.4 V, Nominal Operating Voltage DC: 24 V
  • Surge Immunity: 2.4 KV, Reverse Polarity Protection: Bipolar

Read more

  • Cable Diameter: 2.9 mm, Cable Structure: 2 x 0.14 mm²
  • Degree of Protection: IP65
  • Ambient Temperature: -10°C to 50°C
  • Compliance: CE Mark (EU EMC Directive, EU RoHS Directive), UKCA Mark (UK EMC and RoHS Instructions), LABS (PWIS) Conformity: VDMA24364-B2-L
  • Material: Cable Sheath - TPE-U(PUR) (Grey), Housing - TPE-U(PU) (Black), Screws - Stainless Steel, Electrical Contact - Copper Alloy, Tin-plated, Insulating Sheath - PP


Product

Manufacturer Material ID -
NEBV-Z4WA2L-R-E-2.5-N-LE2-S1
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
TR
UNSPSC -
26121629
Festo

Availability Available to order

£18.86
