8065124

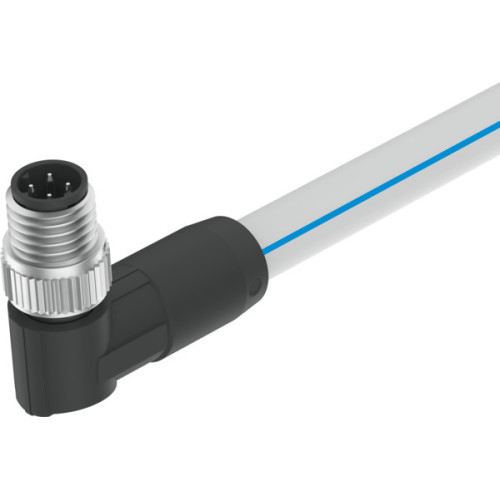

NEBC-D8W4-ES-0.5-N-S-D8W4-ET Connecting cable

Manufacturer's No: NEBC-D8W4-ES-0.5-N-S-D8W4-ET     Manufacturer: Festo
NEBC-D8W4-ES-0.5-N-S-D8W4-ET Connecting cable

Availability Back Order

£28.68
  • Cable based on standard: EN 61076-2-114
  • Approval: c UL us (OL)
  • Cable designation: Without inscription label holder
  • Frequency of connection: 100 Hz
  • Product weight: 46 g
  • Electrical connections: M8x1, D-coded according to EN 61076-2-114, 4 cores each
  • Operational voltage range DC: 0-30 V
  • Nominal operating voltage DC: 24 V
  • Current rating at 40°C: 3 A
  • Immunity to surge: 1.5 KV

Read more

  • Shielding: Yes
  • Cable length: 0.5 m
  • Cable characteristic: Suitable for energy chains
  • Bending radius: 20 mm (fixed), 75 mm (moving)
  • Cable diameter: 6.3 mm, tolerance ± 0.2 mm
  • Conductor nominal cross section: AWG22
  • Degree of protection: IP65, IP67 (in assembled state)
  • Special characteristics: Oil resistant
  • Ambient temperature: -20°C to 60°C
  • Ambient temperature with moving cable: -5°C to 60°C
  • Storage temperature: -40°C to 70°C
  • CE mark: In accordance with EU RoHS Directive
  • UKCA marking: To UK RoHS instructions
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Pollution degree: 3
  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • Materials: Cable sheath - TPE-U(PUR), Housing - PA, TPE-U(PUR), Screw-type lock - Nickel-plated brass, Seals - NBR, Electrical contact - Gold-plated copper alloy, Insulating sheath - PP


Product

Manufacturer Material ID -
NEBC-D8W4-ES-0.5-N-S-D8W4-ET
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
PL
UNSPSC -
26121629
