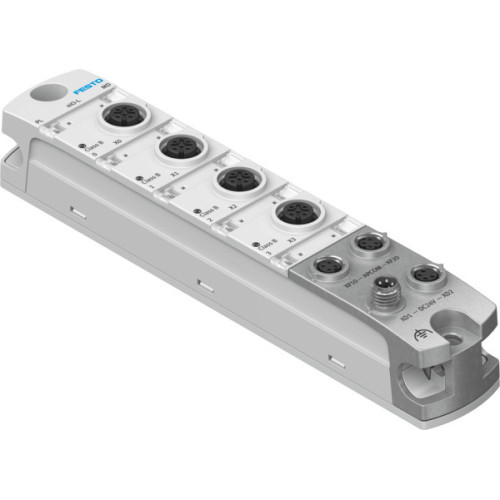

CPX-AP-I-4IOL-M12 IO-Link master

Manufacturer's No: CPX-AP-I-4IOL-M12     Manufacturer: Festo
CPX-AP-I-4IOL-M12 IO-Link master

Availability On Request

£273.26
  • Model: CPX-AP-I-4IOL-M12 IO-Link master
  • Protocol: IO-Link®
  • Dimensions: 30 x 170 x 35 mm
  • Mounting: On H-rail via accessories, with through-hole
  • Weight: 126 g
  • Temperature: -20°C to 50°C (ambient), -40°C to 70°C (storage)
  • Humidity: 5-95%, non-condensing
  • Protection: IP65, IP67 (Unused connections sealed)
  • Corrosion Resistance: CRC 1 - Low corrosion stress
  • Max. Cable Length: 20 m (IO-Link® operation), 50 m (system communication)

Read more

  • Conformity: LABS (PWIS) VDMA24364-B2-L, RoHS
  • Material: Housing - PA, PC, Die-cast zinc, nickel-plated; O-ring - FPM
  • Diagnostics: LED for per channel/module, load power supply, status per channel/module; Internal communication for various events
  • Communication Interface: System communication XF10 IN / XF20 OUT, 2x socket, M8x1, D-coded
  • Power Supply: Incoming electronics/sensors and load via plugs, M8x1, A-coded; Outgoing electronics/sensors and load via socket, M8x1, A-coded
  • Operating Voltage: 24 V DC, ± 25% permissible voltage fluctuation
  • Power: Max. 2 x 4 A (external fuse required), intrinsic current consumption, power failure bridging, reverse polarity protection
  • Electrical Connection for IO-Link: 4 x socket, M12x1, A-coded, 5 pins/wires
  • IO-Link Communication: C/Q green LED, 4 ports, Protocol version Master V 1.1, communication mode DI, COM1.COM2.COM3, configurable via software, process data length parameterizable (8-128 bytes OUT, 12-132 bytes IN), min. cycle time dependent on connected IO-Link® device


Product

Manufacturer Material ID -
CPX-AP-I-4IOL-M12
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
BG
UNSPSC -
32151705
Festo

Availability On Request

£273.26
