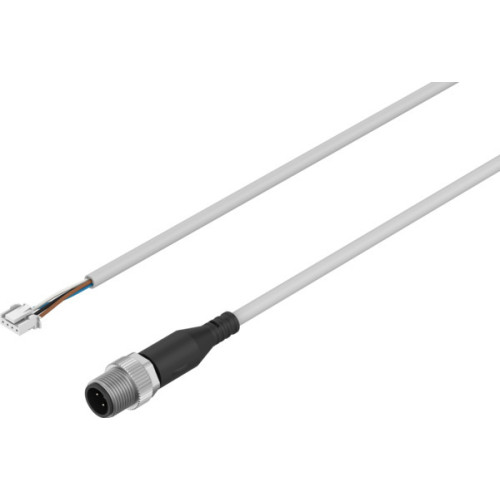

NEBS-L1G4-K-1-N-M12G4 Connecting cable

Manufacturer's No: NEBS-L1G4-K-1-N-M12G4     Manufacturer: Festo
NEBS-L1G4-K-1-N-M12G4 Connecting cable

Availability On Request

£18.10
  • Cable designation: Without inscription label holder
  • Frequency of connection: 100 Hz
  • Product weight: 40 g
  • Electrical connection 1:
    • Function: Field device side
    • Design: Angular
    • Connection type: Socket
    • Cable outlet: Straight
    • Connector system: Connection pattern L1J
    • Number of connections/cores: 4
    • Type of mounting: Snap-locking
  • Electrical connection 2:
    • Function: Controller side
    • Design: Round
    • Connection type: Plugs
    • Cable outlet: Straight
    • Connector system: M12x1, A-coded to EN 61076-2-101
    • Number of connections/cores: 4
    • Type of mounting: Screw-type lock with 13 mm hexagon and longitudinal knurl
  • Operational voltage range DC: 0 V to 30 V
  • Current rating at 40°C: 1 A
  • Immunity to surge: 0.8 kV
  • Cable length: 1 m
  • Bending radius:
    • Fixed cable: 14 mm
    • Moving cable: 46 mm

Read more

  • Cable diameter: 4.5 mm
  • Cable structure: 4 x 0.25 mm²
  • Nominal cross-section conductor: 0.25 mm²
  • Degree of protection: IP65, IP67, IP69K (IP40 for plug connection pattern L1J)
  • Ambient temperature: -20°C to 60°C
  • Ambient temperature with moving cable: -5°C to 60°C
  • Storage temperature: -20°C to 60°C
  • CE mark: In accordance with EU RoHS Directive
  • UKCA marking: To UK RoHS instructions
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Materials: RoHS-compliant, free of halogen
  • Pollution degree: 2
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • Material cable sheath: TPE-U(PUR), Grey
  • Material housing: PA, TPE-U(PUR), Black, White
  • Material screw-type lock: Nickel-plated brass
  • Material electrical contact: Bronze, tin-plated, Gold-plated brass
  • Material insulating sheath: PP


Product

Manufacturer Material ID -
NEBS-L1G4-K-1-N-M12G4
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
BG
UNSPSC -
26121629
Festo

Availability On Request

£18.10
