8176102

Technical data at 3 x 400 V AC: Continuous output current: 6 A, Imax (2 s) = 18 A, Imax (5 s) = 12 A, Power consumption in S1 mode

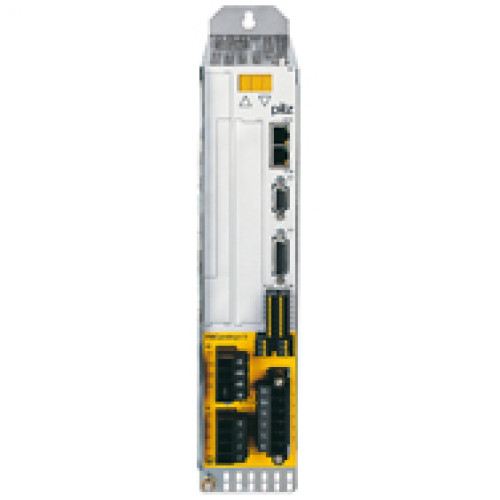

Manufacturer's No: PMCprotego D.06/000/0/0/2/208-480VAC     Manufacturer: Pilz
Technical data at 3 x 400 V AC: Continuous output current: 6 A, Imax (2 s) = 18 A, Imax (5 s) = 12 A, Power consumption in S1 mode: 4.5 kVA Integral brake resistor.

Availability On Request

POA
  • Continuous output current at 3 x 400 V AC: 6 A
  • Peak output current for 2 s: 18 A
  • Peak output current for 5 s: 12 A
  • Power consumption at S1 operation: 4.5 kVA
  • Integrated brake resistor


Product

Manufacturer Material ID -
PMCprotego D.06/000/0/0/2/208-480VAC
Net Weight -
4.40kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
HU
UNSPSC -
43233603

Technical Specification

Degree of protection (IP rating) -
IP20
Depth -
243 Millimetre
Height -
345 Millimetre
Number of analogue inputs -
2
Number of HW-interfaces RS-232 -
1
Width -
70 Millimetre
Pilz

Availability On Request

POA
