8176230

Technical data at 3 x 400 V AC: Continuous output current: 6 A, Imax (5 s) = 12A Power consumption in S1 mode: 4 kVA Int

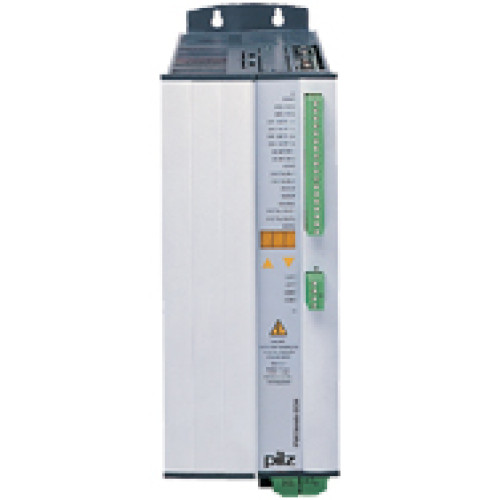

Manufacturer's No: PMCtendo DD4.06/167/230-480V     Manufacturer: Pilz
Technical data at 3 x 400 V AC: Continuous output current: 6 A, Imax (5 s) = 12A Power consumption in S1 mode: 4 kVA Int

Availability On Request

POA
  • Input Voltage: 3 x 400 V AC
  • Continuous Output Current: 6 A
  • Maximum Output Current (5 seconds): 12 A
  • Power Consumption in S1 Mode: 4 kVA
  • Integral Brake Resistor with Relay AS for restart interlock
  • PROFIBUS-DP Interface Card for data exchange
  • Support of drive profile PROFIBUS with PROFIdrive
  • Baud Rates: 187.5 kBaud to 12 MBaud


Product

Manufacturer Material ID -
PMCtendo DD4.06/167/230-480V
Net Weight -
4.20kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
AT
UNSPSC -
43233603

Technical Specification

Depth -
265 Millimetre
Height -
325 Millimetre
Number of analogue inputs -
2
Number of analogue outputs -
2
Number of digital inputs -
4
Number of HW-interfaces RS-232 -
1
Width -
70 Millimetre
Pilz

Availability On Request

POA
