8176540

Technical data at 3 x 400 V AC: Continuous output current: 12 A, Imax (5 s) = 24 A, Power consumption in S1 mode: 9 kVA Integral b

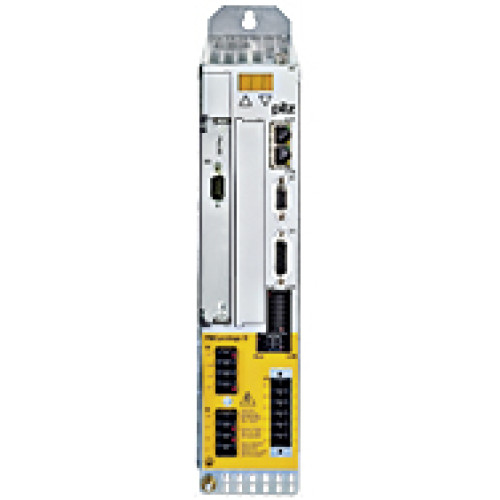

Manufacturer's No: PMCprotego D.12/010/0/0/2/208-480VAC     Manufacturer: Pilz
Technical data at 3 x 400 V AC: Continuous output current: 12 A, Imax (5 s) = 24 A, Power consumption in S1 mode: 9 kVA Integral brake resistor Further hardware options: Expansion card PosI/O.

Availability On Request

POA
  • Input Voltage: 400 V AC
  • Continuous Output Current: 12 A
  • Maximum Output Current (5 s): 24 A
  • Power Consumption in S1 Mode: 9 kVA
  • Integral Brake Resistor
  • Additional Hardware Option: Expansion Card PosI/O


Product

Manufacturer Material ID -
PMCprotego D.12/010/0/0/2/208-480VAC
Net Weight -
4.50kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
HU
UNSPSC -
43233603

Technical Specification

Degree of protection (IP rating) -
IP20
Depth -
243 Millimetre
Height -
345 Millimetre
Number of analogue inputs -
2
Number of HW-interfaces RS-232 -
1
Width -
70 Millimetre
