8176553

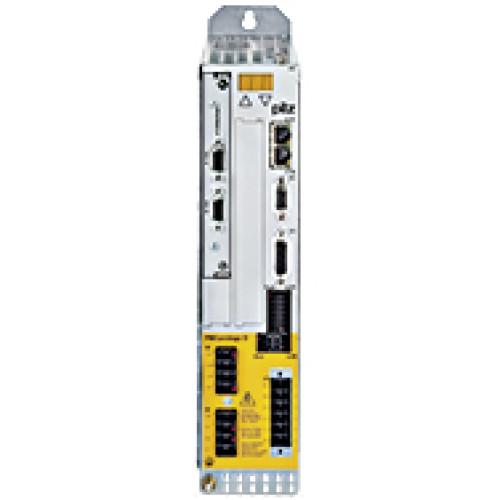

Base device with increased peak output current Technical data at 3 x 400 V AC: Continuous output current: 12 A, Imax (2

Manufacturer's No: PMCprotego D.12/200/0/P/2/208-480VAC     Manufacturer: Pilz
Base device with increased peak output current Technical data at 3 x 400 V AC: Continuous output current: 12 A, Imax (2

Availability On Request

POA
  • Base device with increased peak output current
  • Continuous output current: 12 A
  • Peak output current (2s): 30 A
  • Peak output current (5s): 24 A
  • Power consumption in S1 mode: 9 kVA
  • Integral brake resistor
  • Expansion card option: PROFIBUS-DP slave


Product

Manufacturer Material ID -
PMCprotego D.12/200/0/P/2/208-480VAC
Net Weight -
4.50kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
HU
UNSPSC -
43233603

Technical Specification

Degree of protection (IP rating) -
IP20
Depth -
243 Millimetre
Height -
345 Millimetre
Number of analogue inputs -
2
Number of HW-interfaces RS-232 -
1
Width -
70 Millimetre
