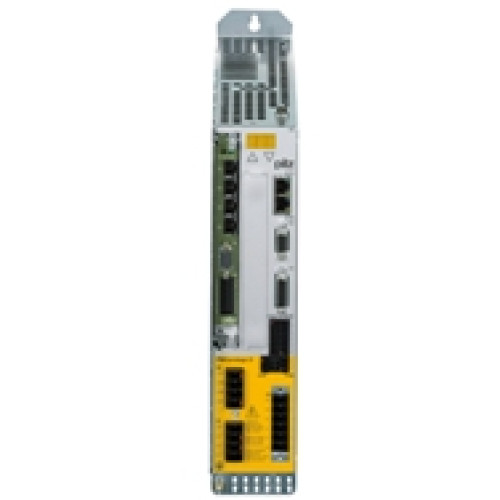

Drive-based motion control system With expansion card PMCprimo C Standard bus system: CANopen, PROFIBUS Software option:

Manufacturer's No: PMCprimo DriveP.06/CC0/2/0/0/208-480VAC     Manufacturer: Pilz
Drive-based motion control system With expansion card PMCprimo C Standard bus system: CANopen, PROFIBUS Software option:

Availability On Request

POA
  • Drive-based motion control system
  • Expansion card: PMCprimo C
  • Bus system: CANopen, PROFIBUS
  • Voltage: 3 x 400 V AC
  • Continuous output current: 6 A
  • Max current (2 s): 18 A
  • Max current (5 s): 12 A
  • Power consumption in S1 mode: 4.5 kVA
  • Integral brake resistor
  • Included: CAN/CAN adapter


Product

Manufacturer Material ID -
PMCprimo DriveP.06/CC0/2/0/0/208-480VAC
Net Weight -
4.62kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
UNSPSC -
43233603

Technical Specification

Depth -
243 Millimetre
Height -
345 Millimetre
Number of analogue inputs -
2
Number of HW-interfaces RS-232 -
1
Voltage type of supply voltage -
AC
Width -
70 Millimetre
