8176819

Technical Details at 3 x 230 AC supply voltage: Permanent output current: 50 A Imax (2 sec.) = 90 A

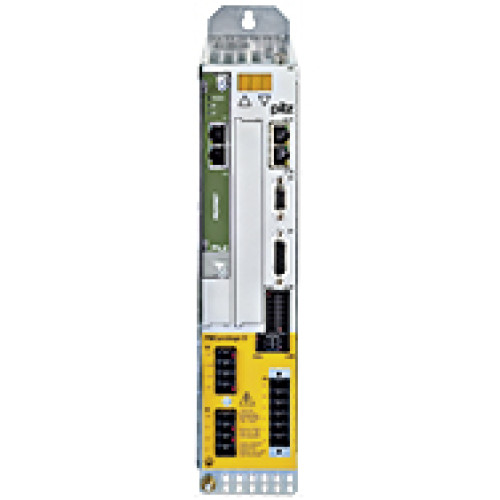

Manufacturer's No: PMCprotego D.03/A00/0/0/2/110-230VAC     Manufacturer: Pilz
Technical Details at 3 x 230 AC supply voltage: Permanent output current: 50 A Imax (2 sec.) = 90 A

Availability On Request

POA
  • Supply Voltage: 3 x 230 V AC
  • Permanent Output Current: 5.0 A
  • Imax (2 sec.): 9.0 A
  • Imax (5 sec.): 6.0 A
  • Power Consumption in S1 Operation: 2.0 kVA
  • Additional Hardware Option: Expansion Card Profinet
  • Features Internal Brake Resistor and Mains Filter


Product

Manufacturer Material ID -
PMCprotego D.03/A00/0/0/2/110-230VAC
Net Weight -
4.50kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
HU
UNSPSC -
43233603

Technical Specification

Degree of protection (IP rating) -
IP20
Depth -
243 Millimetre
Height -
345 Millimetre
Number of analogue inputs -
2
Number of HW-interfaces RS-232 -
1
Width -
70 Millimetre
Pilz
