826-161/000-016

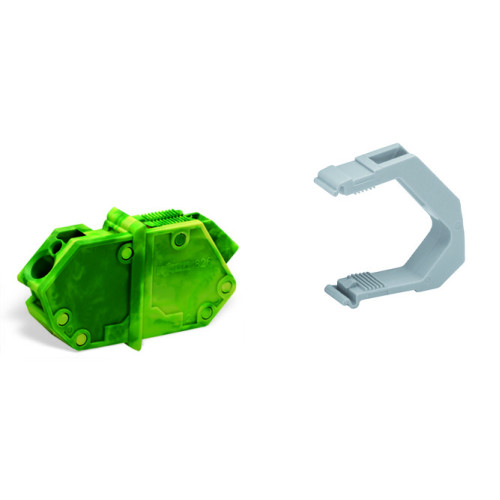

Feedthrough terminal block, Conductor/conductor connection, Plate thickness: 1 … 4 mm, green-yellow

Manufacturer's No: 826-161/000-016     Manufacturer: WAGO
Feedthrough terminal block, Conductor/conductor connection, Plate thickness: 1 … 4 mm, green-yellow

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£3.84
  • Feedthrough terminal block for conductor/conductor connection
  • Plate thickness: 1 to 4 mm
  • 4 mm² conductor capacity
  • Pin spacing of 7 mm
  • 1-pole configuration
  • Utilizes CAGE CLAMP® technology
  • Color: green-yellow


Product

Manufacturer Material ID -
826-161/000-016
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
39269097
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
42.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
7 Millimetre
Height at lowest possible mounting height -
23.55 Millimetre
Connection position -
Inclined
Closing plate required -
Colour -
Green/yellow
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
42.5 Millimetre
Height -
23.55 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
2
Number of poles -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
320 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
7 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£3.84
