831-1104/038-000/306-000

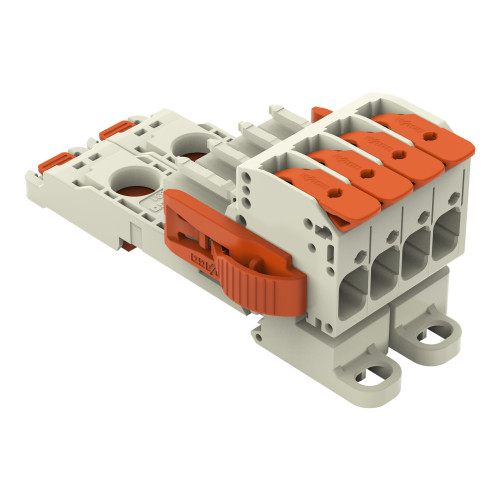

1-conductor female connector, lever, Push-in CAGE CLAMP®, light gray

Manufacturer's No: 831-1104/038-000/306-000     Manufacturer: WAGO
1-conductor female connector, lever, Push-in CAGE CLAMP®, light gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • 1-conductor female connector with lever
  • Push-in CAGE CLAMP® technology
  • 10 mm² capacity
  • Pin spacing of 7.62 mm
  • 4-pole configuration
  • 100% protected against mismating
  • Lateral locking levers for secure connection
  • DIN-35 rail/panel mounting compatibility
  • Light gray color
  • Overall size of 10.00 mm²


Product

Manufacturer Material ID -
831-1104/038-000/306-000
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
88.4 Millimetre
Height -
36.2 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per pole -
1
Number of poles -
4
Operating temperature -
-60 Degrees celsius
Rated current In -
41 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
7.62 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
