831-3105/1019-050

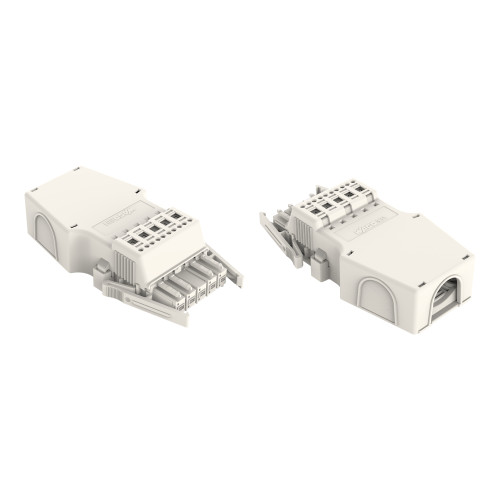

Socket, with strain relief housing, 5-pole, white

Manufacturer's No: 831-3105/1019-050     Manufacturer: WAGO
Socket, with strain relief housing, 5-pole, white

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£11.29
  • Socket with strain relief housing
  • 5-pole configuration
  • Cod. A
  • Wire size: 6.00 mm²
  • Color: White


Product

Manufacturer Material ID -
831-3105/1019-050
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
39269097
Country of Origin -
PL
UNSPSC -
39121402

Technical Specification

Pole codification -
UN
Locking mechanism -
Separate
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Colour coding/contact insert -
White
Cable diameter -
13 Millimetre
Connection cross section (fine-strand) -
0.5 Square millimetre
Connection cross section (solid-core) -
0.5 Square millimetre
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.135 Kilowatthour
Halogen free -
Height -
27.6 Millimetre
Housing material -
Polyamide (PA)
Length -
41.9 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Bus
Number of connections per pole -
1
Number of poles -
5
Pollution degree -
3
Rated current -
35 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Surface finish contacts -
Tinned
Type of locking -
Integrated in plug-in connector
Width -
39.98 Millimetre
With strain relief -
