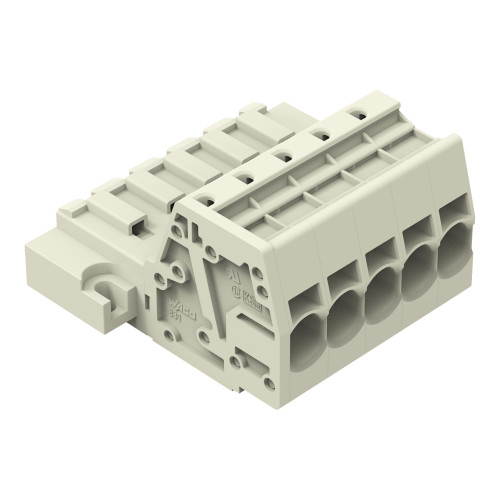

831-3205/109-000

1-conductor male connector, Push-in CAGE CLAMP®, 10 mm², light gray

Manufacturer's No: 831-3205/109-000     Manufacturer: WAGO
1-conductor male connector, Push-in CAGE CLAMP®, 10 mm², light gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • 1-conductor male connector with Push-in CAGE CLAMP®
  • 10 mm² pin spacing
  • 5-pole connector
  • Threaded flange for secure installation
  • 100% protected against mismating
  • Light gray color


Product

Manufacturer Material ID -
831-3205/109-000
Net Weight -
0.95kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
PL
UNSPSC -
39121410

Technical Specification

Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
46 Millimetre
Height -
27.6 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
5
Operating temperature -
-60 Degrees celsius
Rated current In -
41 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
7.62 Millimetre
