831-3209

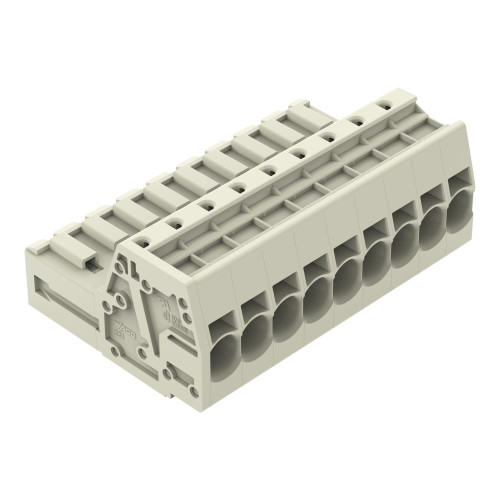

1-conductor male connector, Push-in CAGE CLAMP®, 10 mm², light gray

Manufacturer's No: 831-3209     Manufacturer: WAGO
1-conductor male connector, Push-in CAGE CLAMP®, 10 mm², light gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£12.94
  • 1-conductor male connector
  • Push-in CAGE CLAMP® for secure connections
  • 10 mm² wire capacity
  • Pin spacing of 7.62 mm
  • 9-pole configuration
  • 100% protected against mismating
  • Light gray color


Product

Manufacturer Material ID -
831-3209
Net Weight -
0.81kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Connection position -
UN
Length -
46 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
7.62 Millimetre
Height at lowest possible mounting height -
27.55 Millimetre
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
46 Millimetre
Height -
27.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
9
Operating temperature -
-60 Degrees celsius
Rated current In -
41 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
7.62 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£12.94
Sign in or Register for customer prices.
