831-3646

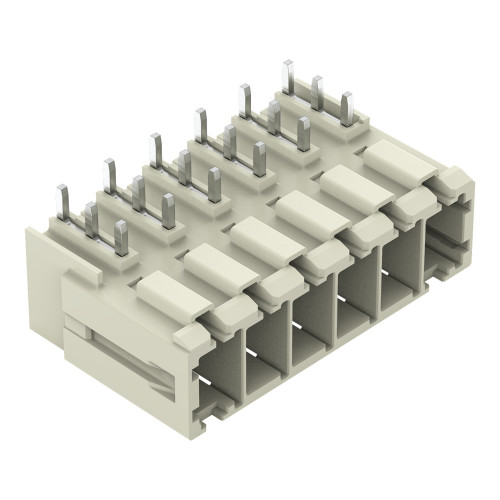

THT male header, 1.0 x 1.2 mm solder pin, angled, 100% protected against mismating, Pin spacing 7.62

Manufacturer's No: 831-3646     Manufacturer: WAGO
THT male header, 1.0 x 1.2 mm solder pin, angled, 100% protected against mismating, Pin spacing 7.62

Availability Back Order

POA
  • THT male header
  • 1.0 x 1.2 mm solder pin, angled
  • Pin spacing: 7.62 mm
  • 6-pole
  • 100% protected against mismating
  • Color: light gray


Product

Manufacturer Material ID -
831-3646
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Angle PCB/contact -
0°/180° (horizontal)
Connector model -
Free connector
Contact type -
Pin
Housing colour -
Other
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
4 Millimetre
Material insulation body -
Thermoplastic
Material of contact surface -
Tin
Modular spacing connections -
7.62 Millimetre
Modular spacing contacts -
7.62 Millimetre
Number of plug-in contact rows -
1
Number of poles -
6
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
41 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
630 Volt
Suitable for PCB thickness -
1.5 Millimetre
Type of banding -
None
Type of connection -
Flexible PCB-connector
Type of electric connection -
Soldering connection
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability Back Order

POA
