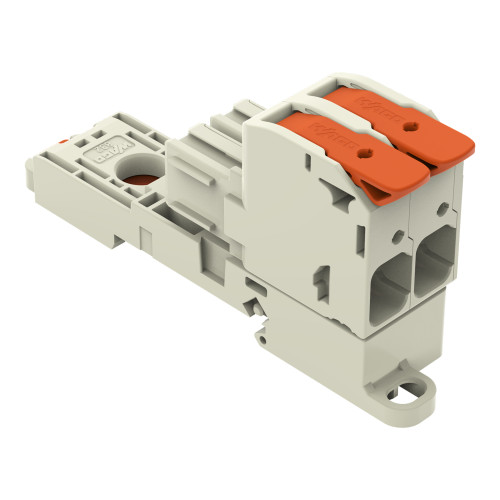

832-1102/306-000

1-conductor female connector, lever, Push-in CAGE CLAMP®, light gray

Manufacturer's No: 832-1102/306-000     Manufacturer: WAGO
1-conductor female connector, lever, Push-in CAGE CLAMP®, light gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • 1-conductor female connector with lever
  • Push-in CAGE CLAMP® technology
  • 16 mm² wire capacity
  • Pin spacing of 10.16 mm
  • 2-pole configuration
  • 100% protected against mismating
  • DIN-35 rail/panel mounting
  • Silver-plated contacts
  • Light gray color


Product

Manufacturer Material ID -
832-1102/306-000
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Depth -
92.9 Millimetre
Height -
42.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per pole -
1
Number of poles -
2
Operating temperature -
-60 Degrees celsius
Rated current In -
76 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
10.16 Millimetre
