832-1206

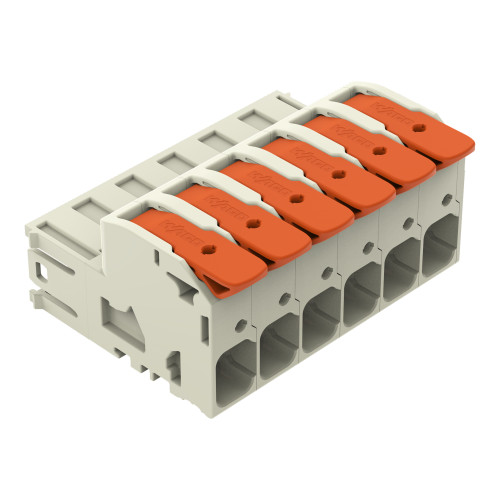

1-conductor male connector, lever, Push-in CAGE CLAMP®, light gray

Manufacturer's No: 832-1206     Manufacturer: WAGO
1-conductor male connector, lever, Push-in CAGE CLAMP®, light gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£14.77
  • 1-conductor male connector with lever
  • Push-in CAGE CLAMP® technology
  • 16 mm² pin spacing
  • 6-pole connector
  • 100% protected against mismating
  • Silver-plated contacts
  • Light gray color
  • Connector size: 16.00 mm²


Product

Manufacturer Material ID -
832-1206
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
39269097
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Connection position -
UN
Length -
46.5 Millimetre
Operation temperature -
-60 Degrees celsius
Width/grid dimension -
10.16 Millimetre
Height at lowest possible mounting height -
29.1 Millimetre
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Depth -
50.6 Millimetre
Height -
29.1 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
6
Operating temperature -
-60 Degrees celsius
Rated current In -
76 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
10.16 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£14.77
