832-3643

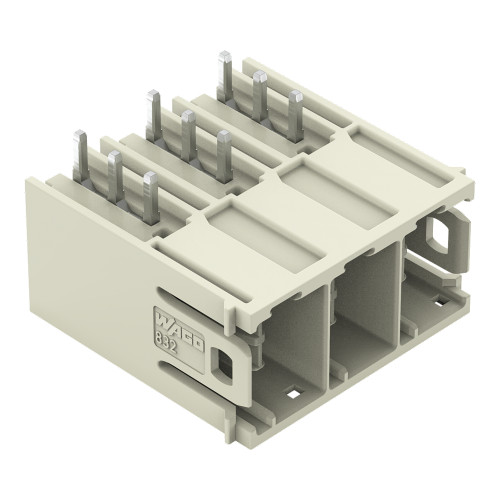

THT male header, 1.2 x 1.2 mm solder pin, angled, light gray

Manufacturer's No: 832-3643     Manufacturer: WAGO
THT male header, 1.2 x 1.2 mm solder pin, angled, light gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£3.34
  • THT male header with 1.2 x 1.2 mm solder pin
  • Angled design with pin spacing of 10.16 mm
  • 100% protected against mismating
  • Silver-plated contacts for enhanced conductivity
  • 3-pole configuration in light gray color


Product

Manufacturer Material ID -
832-3643
Net Weight -
0.78kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Diameter connection pin -
- Millimetre
Colour housing -
Other
Operation temperature -
-60 Degrees celsius
Angle PCB/contact -
0°/180° (horizontal)
Connector model -
Free connector
Contact type -
Pin
Housing colour -
Other
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
4 Millimetre
Material insulation body -
Thermoplastic
Material of contact surface -
Tin
Modular spacing connections -
10.16 Millimetre
Modular spacing contacts -
10.16 Millimetre
Number of plug-in contact rows -
3
Number of poles -
3
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
76 Ampere
Rated surge voltage -
8 Kilovolt
Rated voltage -
800 Volt
Suitable for PCB thickness -
1.5 Millimetre
Type of banding -
None
Type of connection -
Flexible PCB-connector
Type of electric connection -
Soldering connection
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact
