857-305

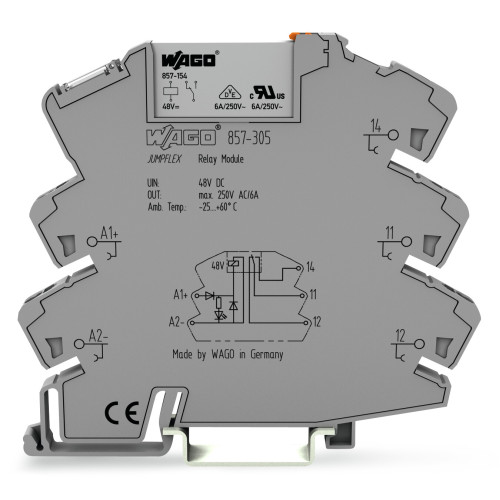

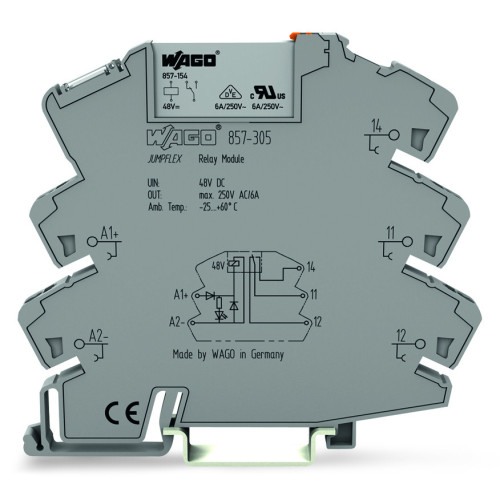

Relay module, Nominal input voltage: 48 VDC, 1 changeover contact

Manufacturer's No: 857-305     Manufacturer: WAGO
Relay module, Nominal input voltage: 48 VDC, 1 changeover contact

Availability On Request

£17.03
  • Relay module for 48 VDC systems
  • 1 changeover contact
  • Limiting continuous current: 6 A
  • Yellow status indicator
  • Module width: 6 mm


Product

Manufacturer Material ID -
857-305
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
39121529

Technical Specification

-
Wago
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
48 Volt
Degree of protection (IP) -
IP20
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
94 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
94 Millimetre
Nominal current -
6 Ampere
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at DC -
48 Volt
Type of electric connection -
Spring clamp connection
Type of switch contact -
Single contact
Voltage type for actuating -
DC
Width -
6 Millimetre
With LED indication -
